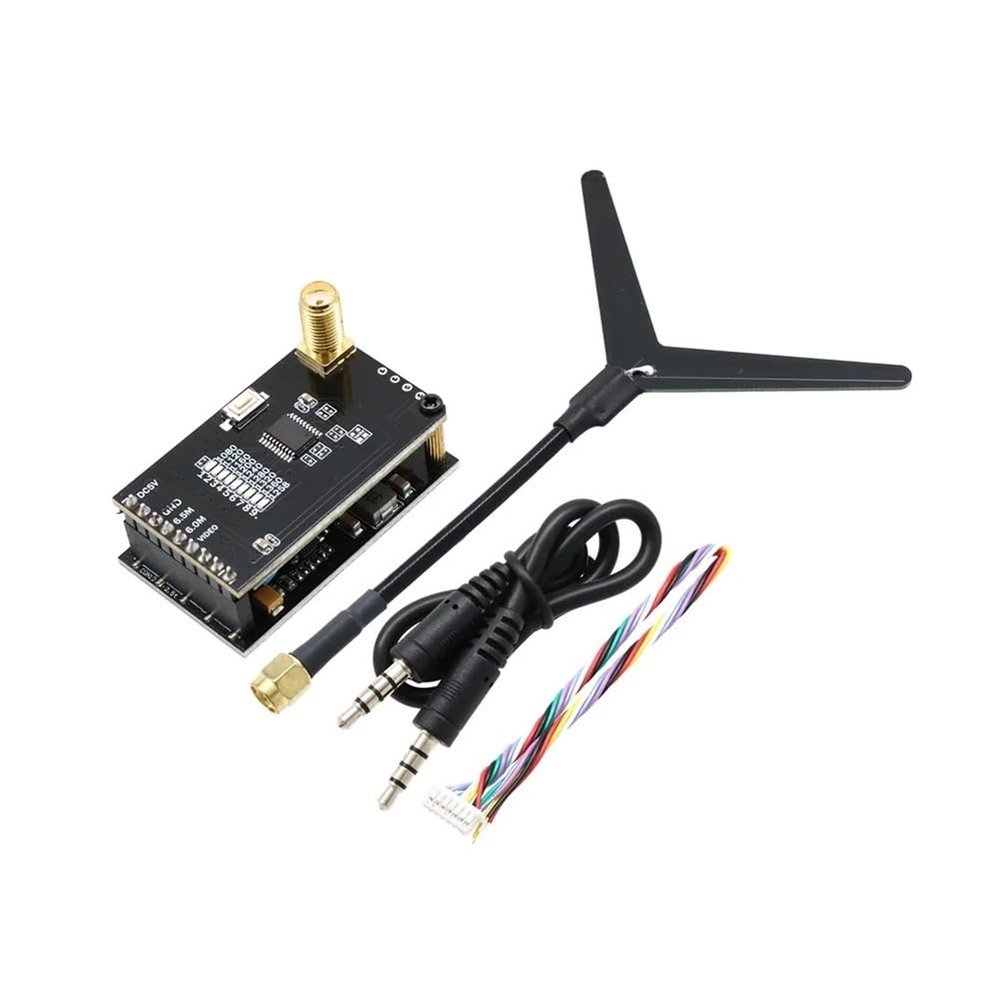

1.2G 1.2GHz 1W 1.6W 2W 25mW/2000mW VTX Switchable Video W/ 1.2G 8Ch For FPV Long Range Racing Drone(1.2G 2W VTX)

Description

• Input compatibility: supports 7-36V DC wide voltage input, suitable for 2-8S lithium batteries, ensuring stable under different power conditions
• Stable output: provides 5V 1A output voltage to ensure continuous and stable power supply for connected devices
• Multi-band support: with 9 channels (1060MHz-1380MHz), the frequency band and power can be flexibly switched to adapt to different environments
• Efficient dissipation: the aluminum shell design improves the dissipation efficiency and ensures the system stability under long-term work
• definition transmission: supports CVBS PAL/NTSC video input, the image transmission power can reach 1.6W, and the picture clarity is improved
• Durable Material: Made of composite materials for excellent bending resistance.
• Balanced Design: Dynamically balanced to reduce vibration and enhance stability.
• Easy Installation: Snap-on connection design allows for quick replacement.

Input voltage: 7-36V DC; 2-8S
Output voltage: 5V 1A
12V input current: 235mA@Pit mode, 360mA@25mW, 880mA@2000mW
Channels: 9 channels (1060MHz-1380MHz)
Power: PIT/25/2000/mW
interface: MMCX audio: IRC-tramp Shell material: aluminum
Size: 37.7*36.1*11 mm; 30.5*30.5mm () : 16g
Interface and button indicator layout:
1. Frequency indicator: red
2. Band indicator: blue
3. Power indicator: green
4. Band and frequency adjustment button
5. Power adjustment button
6. 1.0 6P wire clip
7. MMCX base
1.2G 1.6W image transmission:
Video input format: CVBS PAL/ NTSC
Frequency band: 1060-1380MHz
Channel frequency: CH5-1240 CH1-1080 CH2-1120 CH3-1160 CH4-1200 CH6-1258 CH7-1280 CH8-1320 CH9-1360
Transmit power: 14dB (25mW) 32dB (1600mW)
Input voltage: DC 7-36V (3-6S lithium polymer battery)
Power consumption: 400mA (20mA) @ 12V
Operating temperature: -10-+60
Dimensions: 36mm x 22mm x 7mm
: 10g (image transmission)
Quantity: 1 piece
Dimensions: 37.7x36.1x11 mm
Technical parameters: Value 2
Model: 1.2G 1.6W image transmission
