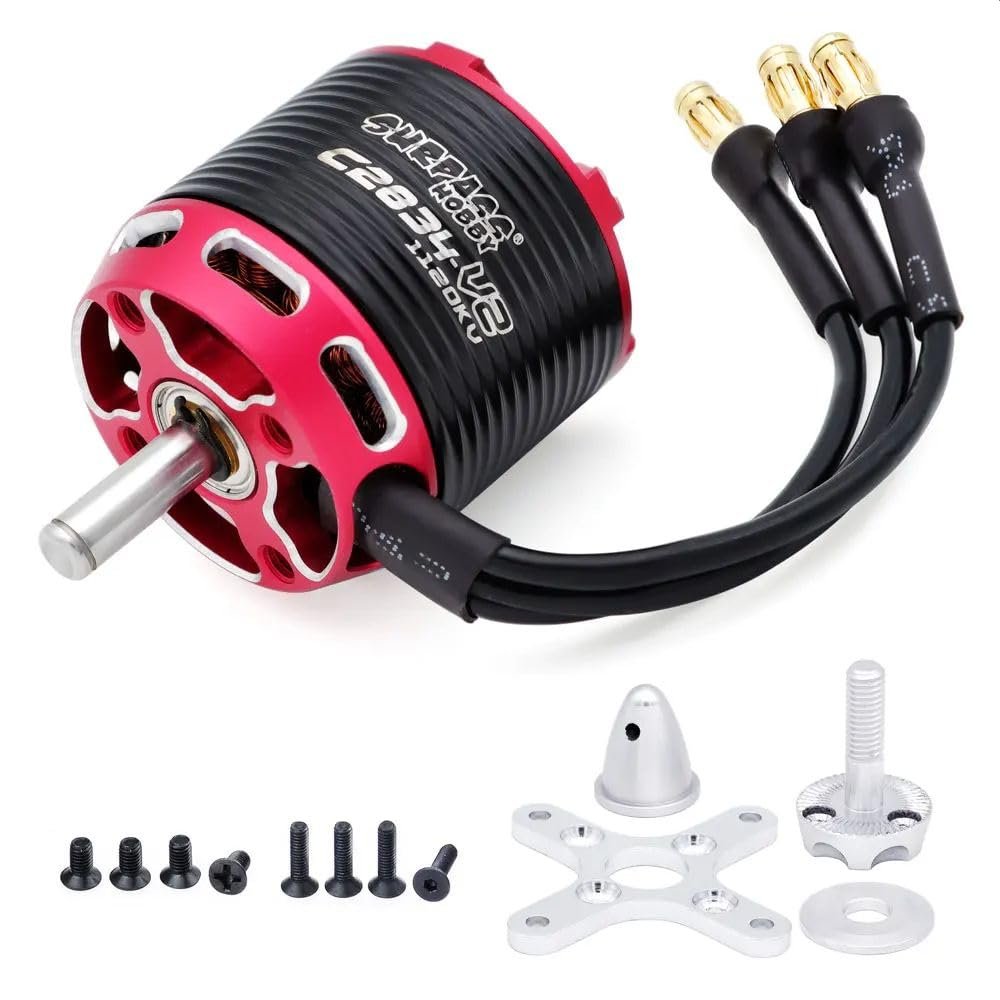

14 Poles C2834 V2 750/880/1120KV Outrunner Brushless Motor for RC Fixed-Wing Airplane (750KV)

Description

• 14 Pole Hi-torque rotor design, stable output power.
• Fits all fixed wing aircraft model.
• CNC Machined 6061 T6 aluminum front and rear cover.
• Motor Size: 28x32mm; Shaft: 4mm; Mounting screw: 4*M3 (Front), 3*M3 (Back)
• Precision balanced rotor, smoothness for best relability and maximum RPM.

Features:
*14 Pole Hi-torque rotor design, stable output power.
*Fits all fixed wing aircraft model.
*CNC Machined 6061 T6 aluminum front and rear cover.
*Precision balanced rotor, smoothness for best relability and maximum RPM.
*High Purity Copper Windings Maximizes Efficiency.
*Precision Engineered for Maximum Energy Conversion.
Specifications:
Product: C2834 V2 Outrunner Brushless Motor
Motor Size: 28x32mm
Stator Size: 22x16mm
KV: 750/880/1120KV
Max Watts: 300/340/380W
Voltage Range: 7-18V(750/880KV); 7-15V(1120KV)
Max Current: 19/22/26A
Rotor Poles: 14
No load Current: 0.6/0.8/1.2A
Resistance: 0.152/0.108/0.068
Propeller Recommend: 11x8.5/11x10/12x6in(750KV); 11x8.5/10x7/12x6in(880KV); 9x6/10x4/11x5.5in(1120KV)
Weight: 67g
Package Included:
1 x C2834 V2 Outrunner Brushless Motor
1 x Instruction
