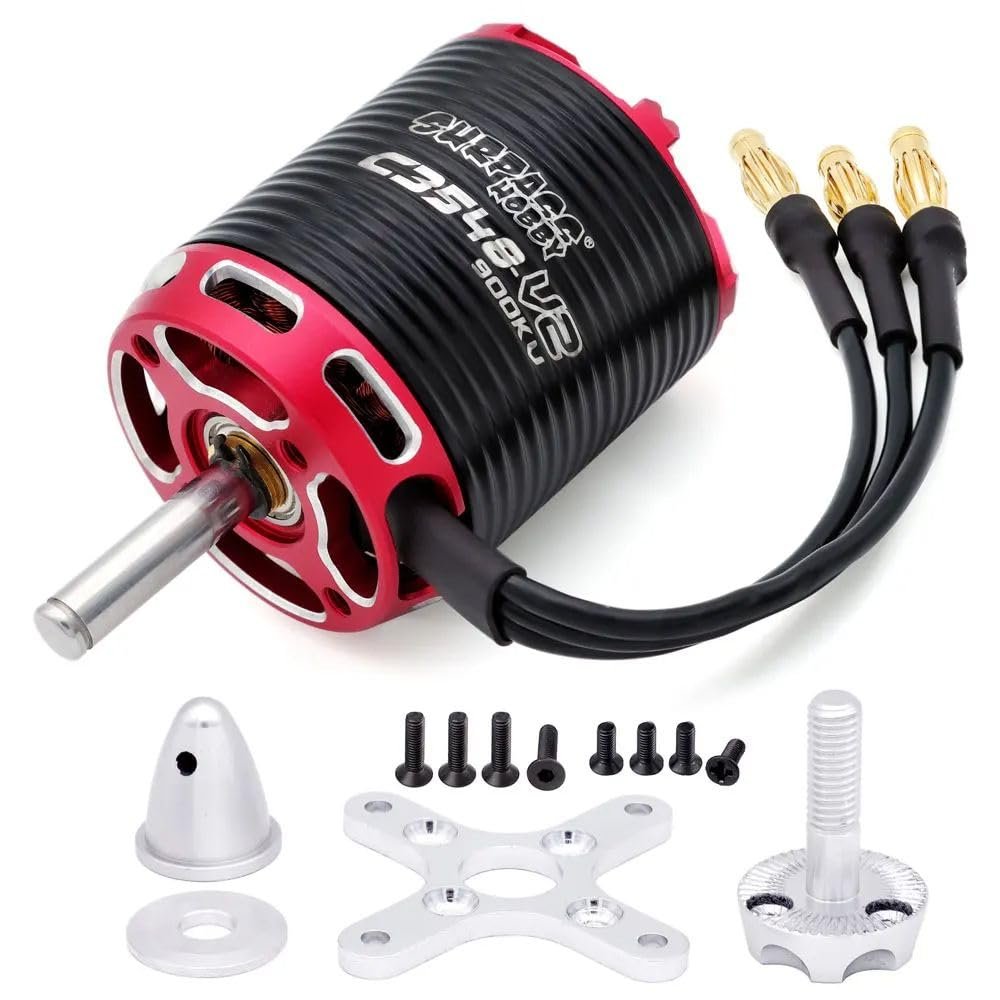

14 Poles C3548 V2 790/900/1100KV Outrunner Brushless Motor for RC Fixed-Wing Airplane (1100KV)

Description

• 14 Pole Hi-torque rotor design, stable output power.
• Fits all fixed wing aircraft model.
• CNC Machined 6061 T6 aluminum front and rear cover.
• Motor Size: 35x46.5mm; Shaft: 5mm; Mounting screw: 4*M3 (Front); 3*M2.5 (Back)
• Precision balanced rotor, smoothness for best relability and maximum RPM.

Features:
*14 Pole Hi-torque rotor design, stable output power.
*Fits all fixed wing aircraft model.
*CNC Machined 6061 T6 aluminum front and rear cover.
*Precision balanced rotor, smoothness for best relability and maximum RPM.
*High Purity Copper Windings Maximizes Efficiency.
*Precision Engineered for Maximum Energy Conversion.
Specifications:
Product: C3548 V2 Outrunner Brushless Motor
Motor Size: 35x46.5mm
Stator Size: 28x26mm
KV: 790/900/1100KV
Max Watts: 840/1000/1100W
Voltage Range: 10-20V/7-18V/7-15V
Max Current: 50/60/72A
Rotor Poles: 14
No load Current: 2/2.2/2.6A
Resistance: 0.051/0.033/0.028
Propeller Recommend: 12x7/13x7/14x7in(790KV); 11x8/13x6/14x7in(900KV); 12x6/12x6.5/13x8in(1100KV)
Weight: 172g
Flier 60A ESC:
Cont./Burst Current: 60A/80A
Battery Cell NiXX/Lipo: 5-18NC/2-6Lipo
Weight: 50g
BEC Output: 5V/6V 8A
Size: 70*34*10mm
Connector: 4.0mm
User Program: Yes
