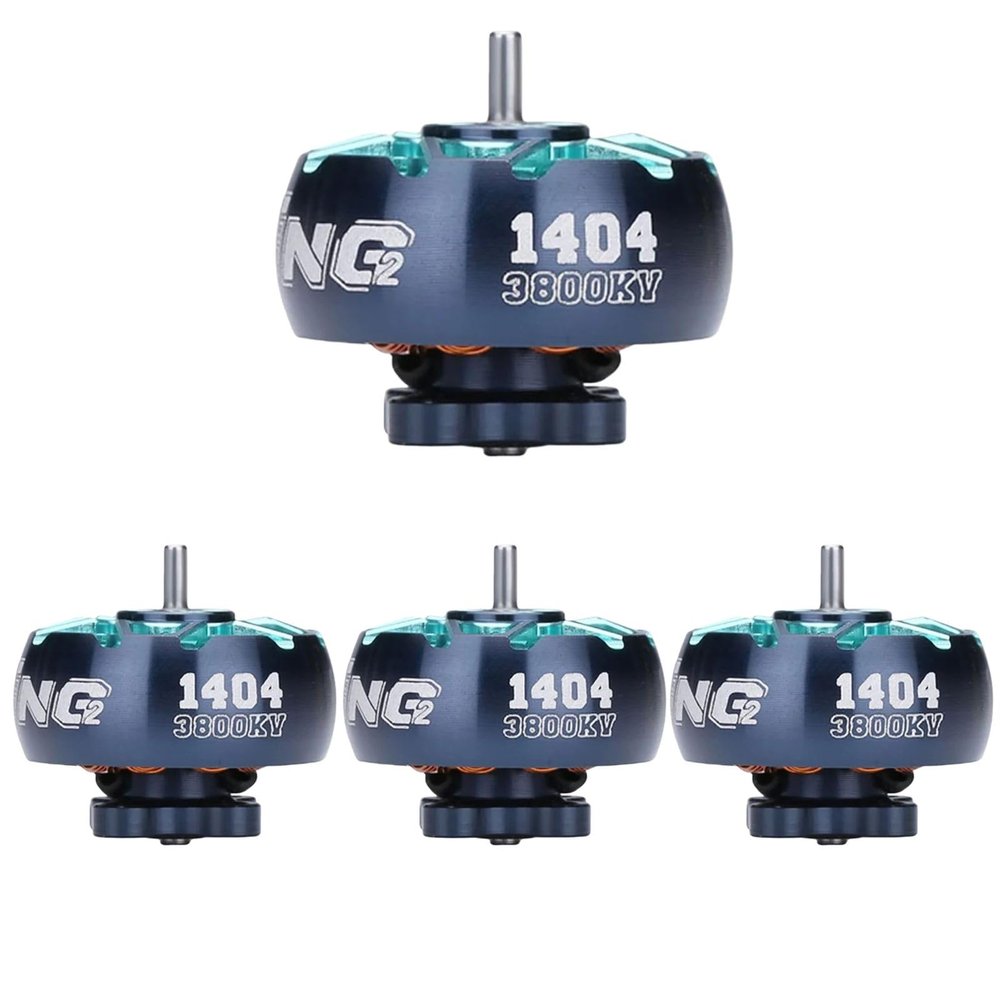

1404 Brushless Motor 3800KV 4600KV 34S Lipo Ultralight Motor with 1.5mm Shaft Compatible with iFlight for 34 Inch Toothpick FPV Drone (1404 3800KV, 4)

Description

• Advanced Brushless Power System Designed for 34 inch FPV toothpick drones, offering a balance of thrust, speed, and efficiency for agile flight.
• Enhanced Motor Structure Built with a titanium alloy shaft and durable bell to reduce vibration, protect bearings, and ensure consistent performance.
• Compatible with iFlight Drones The 1404 motor integrates seamlessly with iFlight builds and other lightweight FPV setups, supporting 34S Lipo power for versatile use.
• Due to the high quality materials used and the durable bell and shaft seal, we have been able to minimize magnetic air gap and stator lamination. The smaller the air gap, the lower the reluctance and the higher the magnetic flux (which is the magnetic analog of the current) which will cause higher efficiency and higher power.
• Smooth and Reliable Rotation ensure reduced friction, stable operation, and extended motor life.

Item Name:XING2 1404 Ultralight Brushless Motor

KV3800KV / 4600KV

3800KV
Configu-ration: 9N12P
Stator diameter: 14mm
Stator length: 4mm
Shaft diameter: 1.5mm
Motor Dimension: 19.9*13.5mm
Weight: 9.1g/pc
Idle current (10) @5V(A): 0.47
No. of cells (Lipo): 3~4S
Max continuous power (W) 60S: 253.4W
Internal resistance: 0.220m
Max current(60S): 15.84A

4600KV
Configu-ration: 9N12P
Stator diameter: 14mm
Stator length: 4mm
Shaft diameter: 1.5mm
Motor Dimension: 19.9*13.5mm
Weight: 9.1g/pc
Idle current (10) @5V(A): 0.72
No. of cells (Lipo): 3~4S
Max continuous power (W) 60S: 287.8W
Internal resistance: 0.159m
Max current(60S): 17.99A

Features:
In early 2018 we started putting O-rings on our bearings between the motor bell and the stator. This works like a shock absorber
