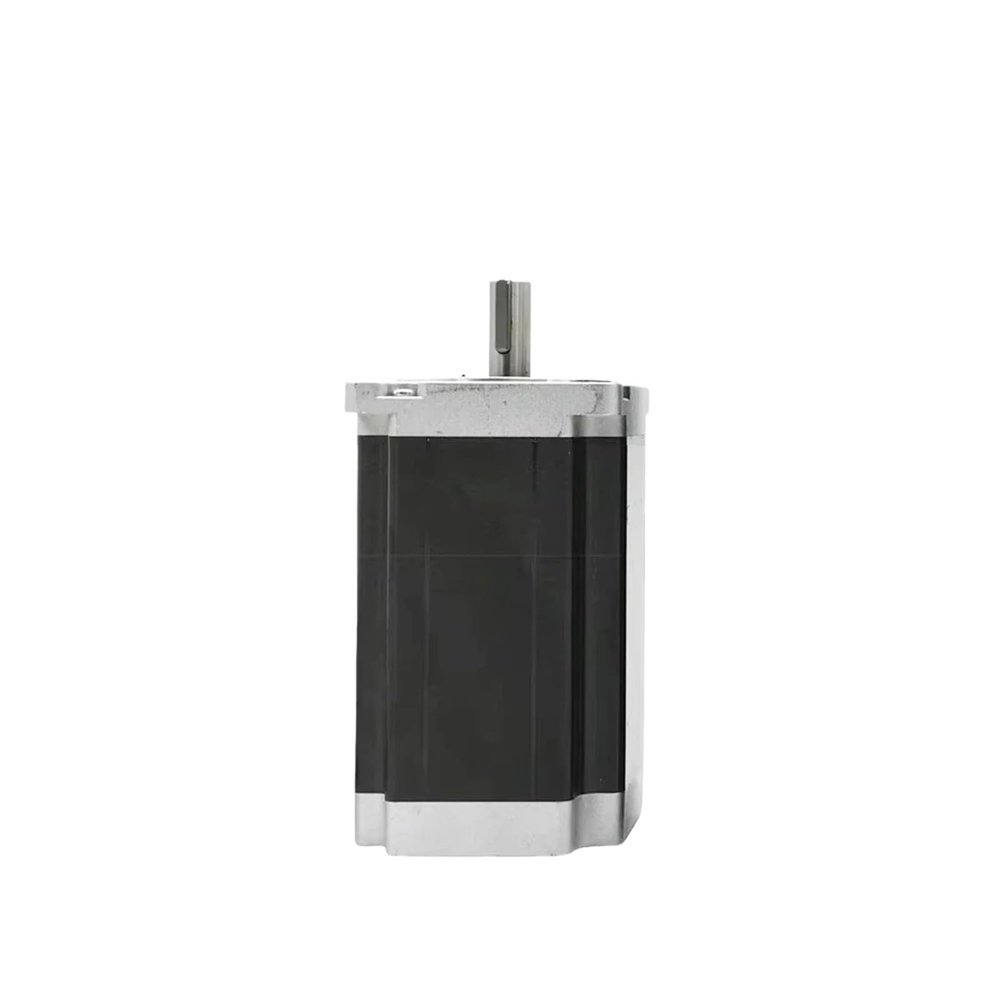

1-5 Axis 34 Stepper Motor Drive Power Kit 4.5/8.5/12NM 86mm 2PH 6A 14mm Shaft Motor for CNC Router Single Axis Robotic Arm(4.5Nm Stepper Motor)

Description

• Motors

Motors
Driver Technical Parameters:
Model:HB860CInput voltage:AC18V-80V/ DC24-110VSubdivision:400-51200steps/turn
Power Supply Technical Parameters:
Model: S-400-60
Rated Load:400W(Max Load)
Input Voltage:AC100-120V/200-245VAC 50/60Hz
Output Voltage:DC60V(Constant Voltage)
Output Current:6.5A
Conversion Efficiency:more than 80%
Working temperature:-30~+50C
IP code: IP20

High-concerned chemical : None
Model Number : 86HS8060A4J14+HB860C+S-400-60
Holding torque : 4.5/8.5/12N.m
Motor Current : 6A
Driver : HB860C
Power Supply : S-400-60
Control card : MACH3
