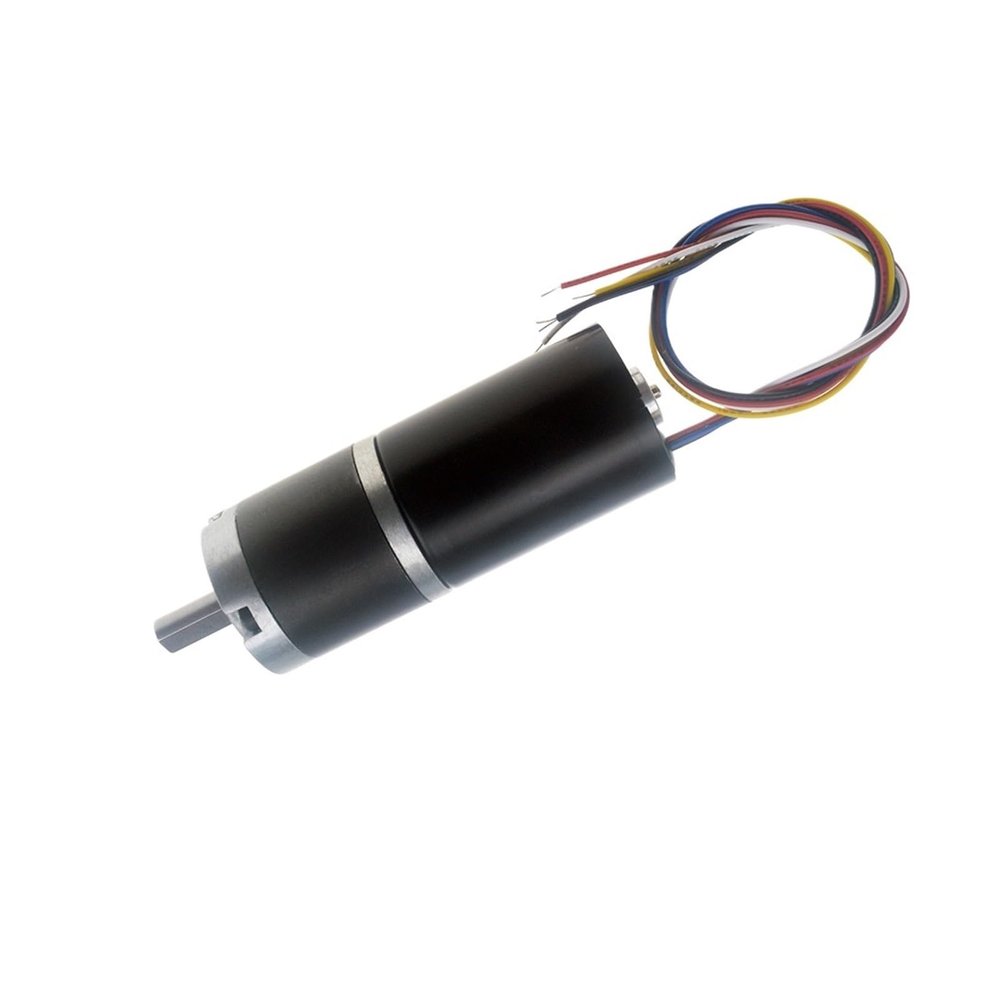

150kg.cm Powerful Torque 12V 24V DC Brushless Planet Gear Motor With FG Reverse PWM Speed Regulation Planetary BLDC Gearmotor(37 RPM,12V)

Description

• Low failure rate: High-quality materials and precise manufacturing significantly reduce the probability of faults such as carbon brush wear and coil short circuits.
• Lightweight design: Reducing weight while ensuring performance, contributing to the overall lightweight goal of the vehicle.
• Easy installation: Standardized interfaces and modular design enable quick installation and replacement without the need for complex tools.
• Anti-electromagnetic interference: Special shielding technology suppresses its own electromagnetic interference and resists external electromagnetic influences.
• It is equipped with an internal overload protection device, which automatically cuts off power when encountering resistance to prevent motor damage.

Specifications:
Operating Voltage Range: 6-12VDC Rated Voltage: 12 VDC
Operating Temperature:-10~+60 Storage Temperature: -30~+85
No-Load Current: 0.5a Max.Stall Current: 1.5a
Motor Brush Type: Brushless Gear Type: Metal planet
Rated Torque:35kg.cm Max.Stall Torque: 150kg.cm
Dimensions:
Parameter:
Product show:
Function of wire:
Red wire: Power+
Black wire: Power-
White wire: CW&CCW
Blue wire PWM speed controlled (15KHZ-25KHZ)
Yellow wire: FG speed feedback 6PPR
Product Application:
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain,
camera, medical service, oxygen machine, etc.
always provide good quality and good motors,if you have any problem,please contact
us first. we wil provide good service Compatible With you. thanks.
==========
Torque : Max 150kg.cm
Usage : Car,Home Appliance
Model Number : MH36-3650
Continuous Current(A) : 150mA
Construction : Permanent Magnet
Type : Gear Motor
Compatible With Protect Feature : Totally Enclosed
Commutation : Brushless
Efficiency : IE 1
Output Power : 35W
Origin : Mainland China
