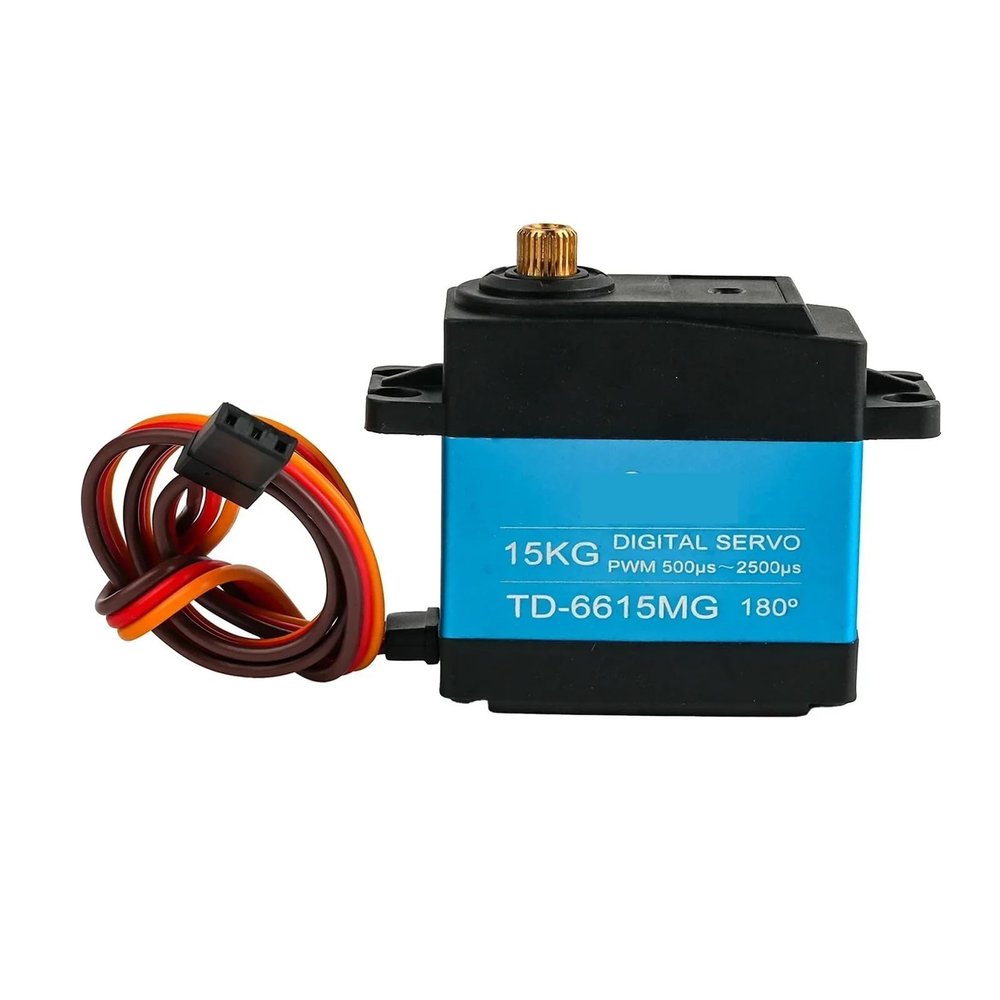

15KG TD-6615MG Servo 180 25T Metal Gear Motor

Description

• Steering Gear

Steering Gear
1. Storage temperature range: -30C~80C
2. Operating temperature range: -25C~70C
Mechanical specifications:
1. Dimensions: 40.0*20.5*40.5mm
2.Weight: 80g2g
3. Limit angle: 360
4. Bearing: 2BB
5. Horn gear spline: 25T Diameter: 5.9mm

7. Connecting wire: 320mm5mm
specifications:
1. Operating voltage range: 4.8-6.8V

4. Pulse width range: 500-2500usec
5. Neutral position: 1500 usec
6. Operating angle: 1803 (PWM 500-2500usec)
or 2703 (PWM500-2500usec)
7. Dead zone width: 3 usec

Dimensions: 40.0*20.5*40.5mm

Model: TD-6615
