23KG Low Profile Digital Servo and 25T Servo Arm,High Torque Full Metal Gear for 1/10 RC Car On-Road Touring Drift Car/Robot/Boat

Description

• Excellent Quality Workmanship:The 23KG Low Profile Servo made with excellent Plastic Shell material (lightweight and fast heat dissipation) and high-precision Full Metal Gear (more durable and prevent tooth sweeping) with Hard Anodizing, combined with Dual Ball Bearings, has a longer service life.
• High Performance Digital Standard:The 23KG RC Servo with Large Torque can achieve Low Noise, Good Stability, Small Vibration, Smooth Operation, Excellent Linearity, Precision Control, Fast Response.
• Waterproof Design:After our actual measurement, the digital servo can still work for a long time even when completely submerged in water. Excellent waterproof performance, easy to handle complex road surfaces containing sediment, ice, snow, and water under various climatic conditions.
• Widely Use:The High Torque Digital Servo is suitable for remote control models such as crawlers Mn99s, 1/10 1/12 rc car 144001 12428 124018, rc boat, rc aircraft,rc drones,rc helicopters, on-road,off-road buggy Mn86, etc.
• Note:In the frequency range of 500~2500us, the maximum controllable angle of the servo can be accurately achieved at 180 degrees, and the servo can achieve a control angle of 90 degrees under the control of a transmitter.

High performance digital standard
Low noise and long service life
Small volume and large torque
Suit for RC car boat helicopter model

Specifications:
Item name: DSpower S011M
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 23.4kgfcm ;
No Load Speed : 4.8V0.13sec/60; 6.0V0.11sec/60
Stall Current:4.8V 1900mA;6.0V2500mA
Consumption Current* (No Load):4.8V 120mA;6.0V130mA
Horn Gear Spline:25T
Remote controller Operating Angle:About 902
Max. Operating Travel Angle:180 2 (500~2500 us)
Dead Band Width: 5us
Mechanical Limit Angle: 360
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS
Gear Set Material : Metal gear
Weight: 50g
Size: 42.3 15.4 32.1mm
Length of Connector cable: JR 250MM5mm (exposed without plug)

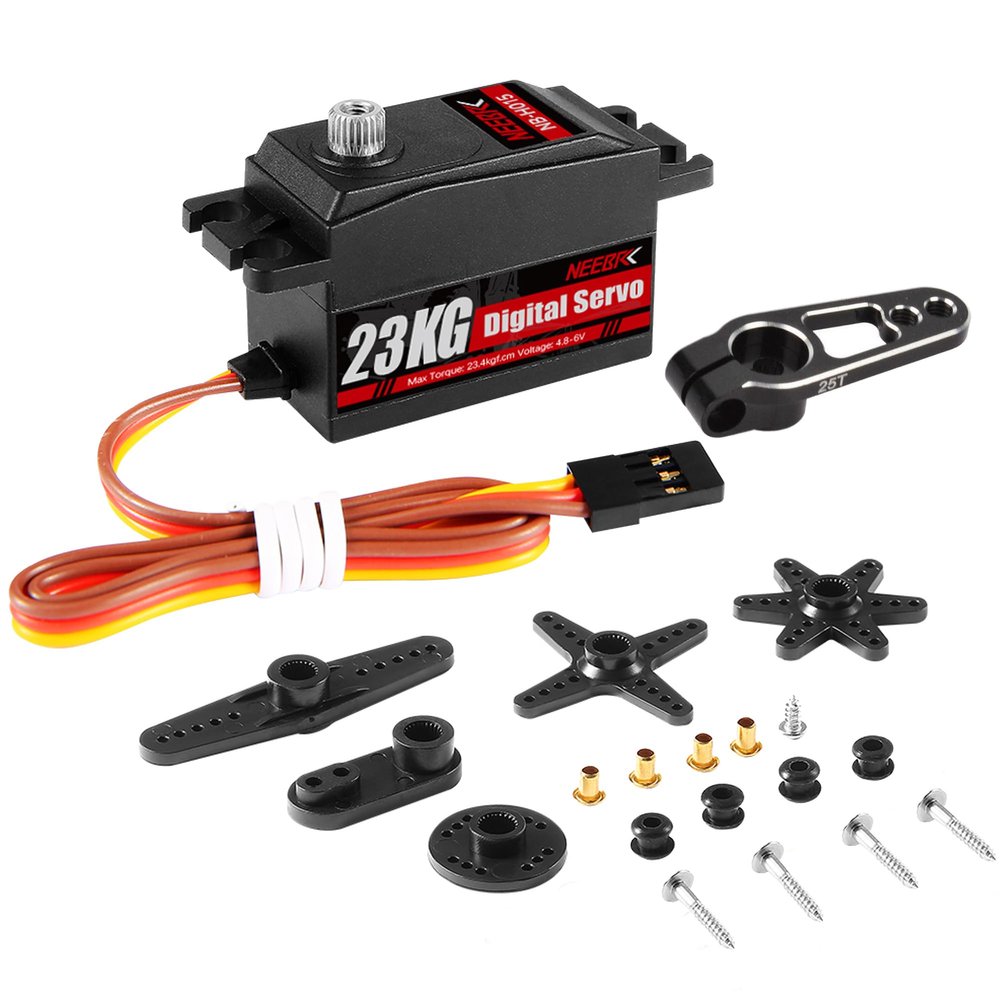

Package included:
1 * 23KG Digital Servo
1 * Servo Arm Accessories
1 * 25T Metal servo arm
