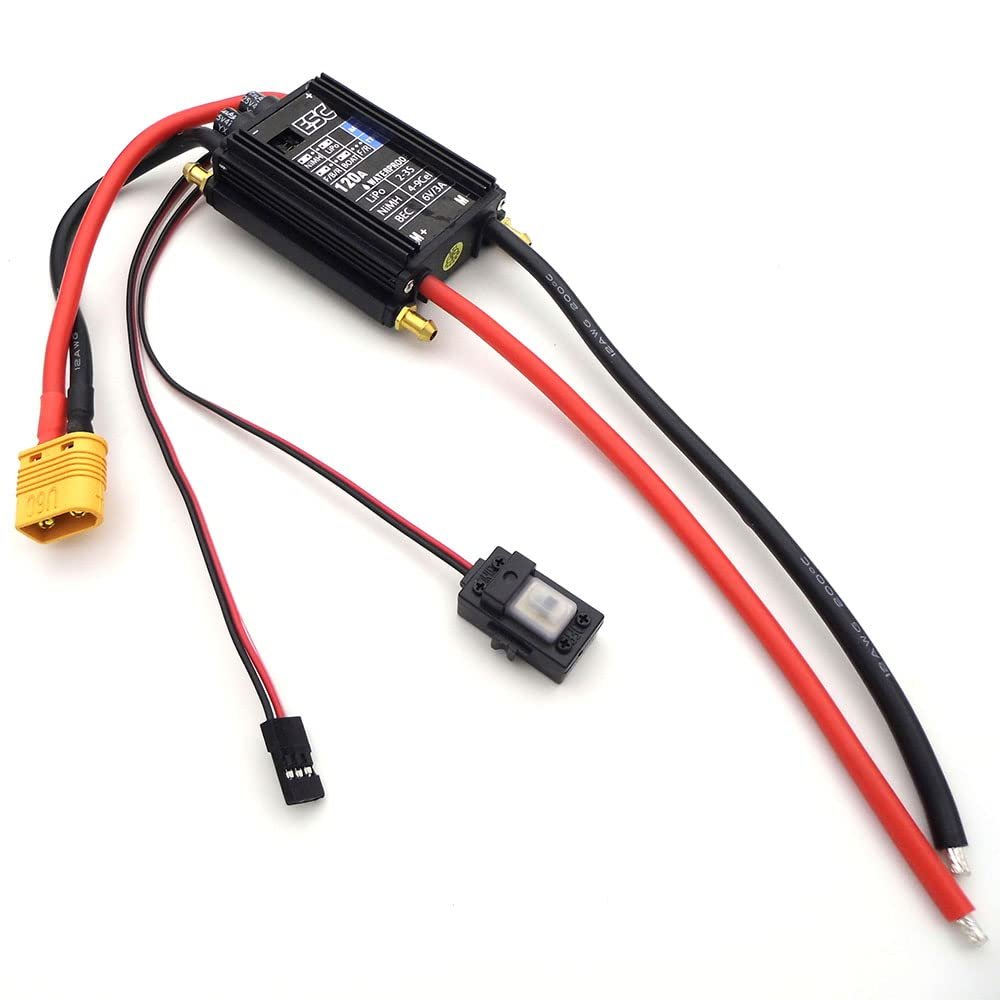

3S 120A ESC Brush Motor Speed Controller 2-Ways Forward Backward for RC Boat Tug Fishing Bait Boat Cruise Marine

Description

• Widely use for RC boat, RC tug boat, RC fishing bait boat, RC cruise, RC marine, RC car, tank etc.
• Suitable for 550, 775, 795, 895, 997 brush motor.
• Build in 6V/3A BEC,It can drive 2PCS 25kg servos.
• Continuous/Peak Current: forward 120A/640A, Backward 100A/640A
• Working Voltage: 3S LiPo

Widely use for RC boat, RC tug boat, RC fishing bait boat, RC cruise, RC marine, RC car, tank etc.
Suitable for 550, 775, 795, 895, 997 brush motor.
Automatically to find the neutral point, No throttle rang calibration required.

Please Note: BEC is a switching-Mode regulators, Please don`t use two ESC in parallel to power the receiver, otherwise they will be burned.

Three Working modes Be set by short circuit cap:
Mode 0: Forward/ Backward Model.
Mode 1: Forward/Backward Model( For RC Boat )
Mode 2: Forward/Brake/Backward( Throttle stick move back brake )

Mode 0: no brake
Mode 1: no brake
Mode 2: The throttle stick move back across the neutral position, the motor braked to a stop,At this time, if you want to reverse the motor, you must move the throttle stick to the neutral point first.

LED Indicate:
LED flash fast-- Working normally
LED off: Standby
LED flash slowly-- Signal lost or the throttle stick is not at the neutral point

How to use:
1, Connect with receiver,motor,battery correctly.
2, Turn on the power of ECS, it will emit "Bi""bi""bi" tone, If the transmitter is off, LED will flash fast slowly.
3, Push the throttle stick to the neutral point,Turn on the transmitter, and adjust the throttle trim until the LED off, at the same, the ESC emit " long Bi ", that means the neutral position has been confirmed.

-- Specification & Features --

- Working Voltage: 3S LiPo
- Remote control signal PWM: 800us-2200us
- Neutral Point: 1500us
- Continuous/Peak Current: forward 120A/640A, Backward 100A/640A
- BEC: 6V/3A
- Motor Limit:
Drive ability at the same time 3PCS 550, 2PCS 775, 2PCS 795, 1PCS 895 or 1PCS 997 Motors

-- Item Contains --

1x 120A ESC Brush Motor ESC( Easy to use,no manual )
