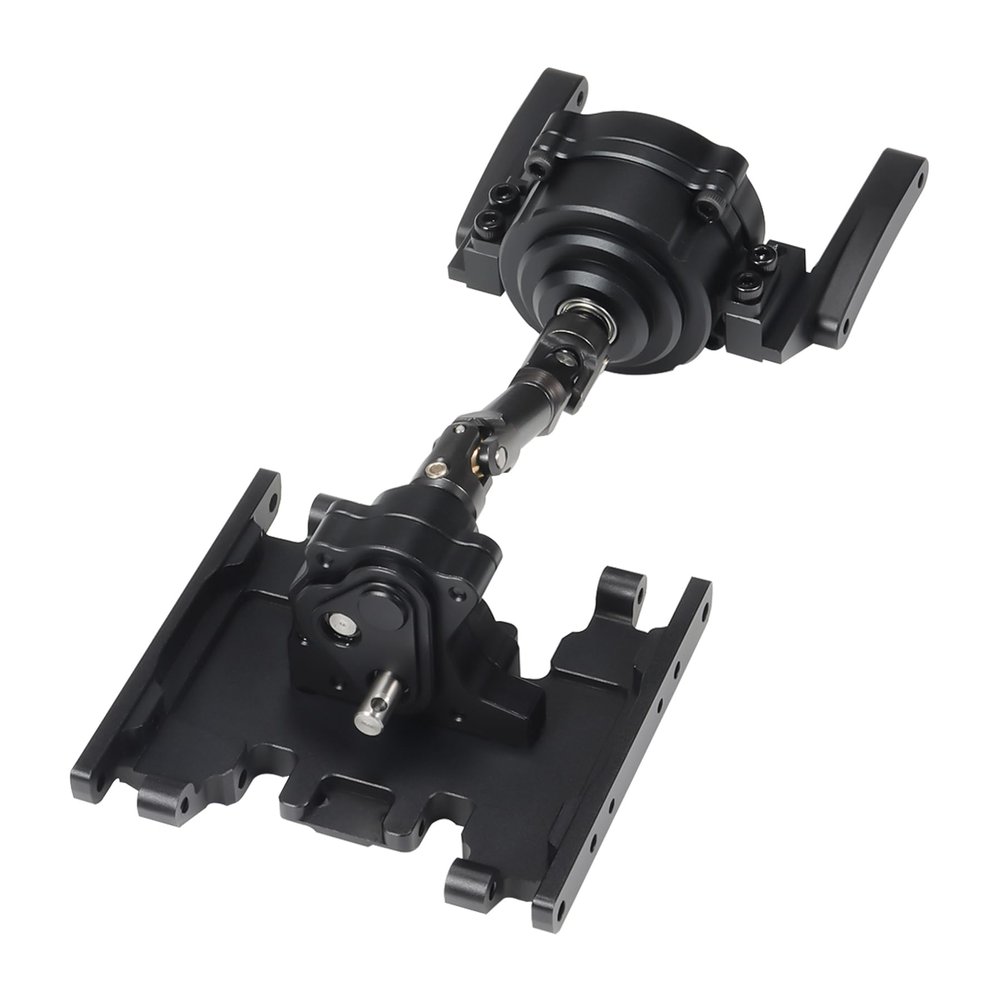

AMK Preceding Motor Planetary Gear 1/10 Scale Transmission, Aluminum Alloy Gearbox Transfer Case Skid Plate Drive Shaft Set for RC Crawler Axial SCX10 II LCG Chassis (Black)

Description

• SCX10 II Transmission1/10 transmission gearbox is desgined for Axial SCX10 and SCX10 II. For other models and DIY chassis, please select according to the size and performance parameters
• Aluminum Transmission 1/10All-metal housing and metal gears for a stronger, more durable gearbox; Aluminum transfer case and transmission plate for lightweight design
• Professional LCG Transmission 1/10The overall position of the motor, splitter box and gearbox is forward and the center of gravity of the chassis is shifted forward. Specially designed for 1/10 RC Crawler LCG chassis
• Planetary Gear Transmission 1/101Pcs 45T Sun gear, 3Pcs 16T Planet gear, provide high torque output and speed. Different speed ratios can also be realized by adjusting the relative positions and connections between the gears
• Reliable PerformanceRobust and CNC-machined gears with precise dimensions and close meshing for smooth operation

Specifications
Transmission Plate:
Length: 78mm / 0.28in
Width: 73mm / 2.87in

Transfer Case Mount:
Length: 72mm / 2.83in
Width: 57.5mm / 2.26in

Gear Ratio
Sun Gear: 45T
Planet Gear: 16T
Motor Pinion: 12T
Planetary Gearbox: 1:3.75
Transfer Case: 1:1.53

Weight
Planetary Gearbox: 135g(4.76oz)
Transfer Case: 65g(2.29oz)
Short Drive Shaft: 32g(1.13oz)
Skid Plate: 59g(2.08oz)

Featrues
Quality aluminum alloy, CNC machined
Black / silver anodized
Hardened gears, ball bearings, with smooth operation
Adjustable front motor mounting, changing the center of gravity of the chassis, not touch the servo on rails
Fits Axial SCX10 II 90046 chassis DIY
