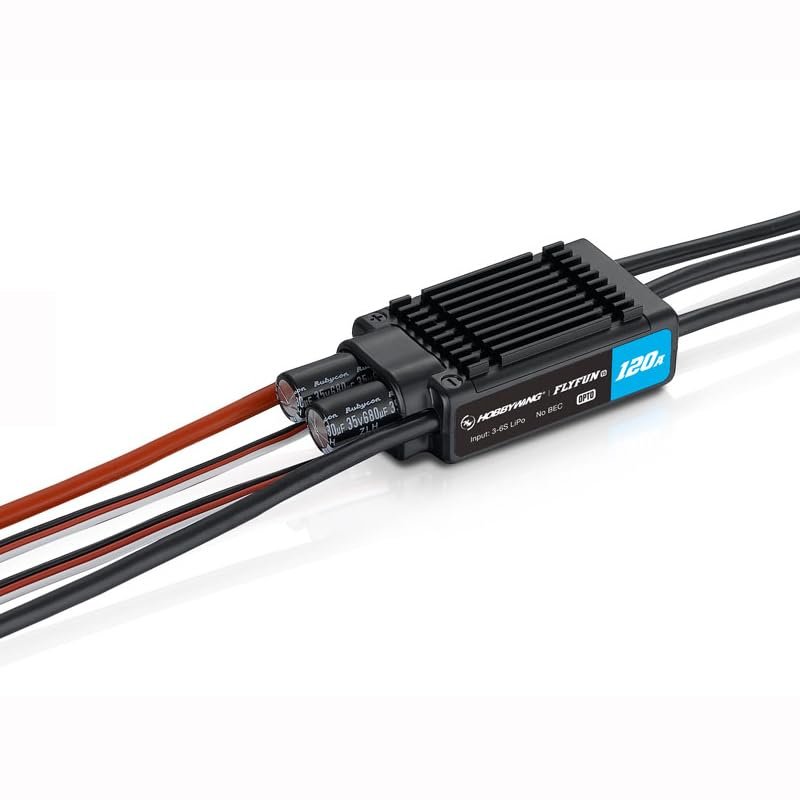

Ancalos Hbywing FlyFun V5 60A/80A/120A/130A/160A 3-6S 6-14S Brushless ESC With DEO Function ForRC FPV Drone Aircraft Quadcopter Toys - (Color: FlyFun 120A V5)

Description

• Color: FlyFun 120A V5
• Technical parameters: Value 2
• Model number: FlyFun V5 ESC
• Forvehicle type: Helicopters
• Tool supplies: Battery

Hbywing FlyFun V5 60A/80A/120A/130A/160A 3-6S 6-14S Brushless ESC
http://www.Hbywing.com/products/enpdf/FlyFunV5en.pdf
FlyFun 20A V5 Brushless ESC:
High Voltage/Regular: Regular
Cont./Peak Current: 20A/30A.
Input Voltage: 2-4S LiPo.
BEC Output: Switch Mode: 5.2V/2.5V, 4A.
Input Wires: Red-18AWG-150mm*1 , Black-18AWG-150mm*1.
Output Wires: Black-18AWG-100mm*3.
Input Connectors: No.
Output Connecotors: 2.0mm Gold Connectors (Female).
ESC Programing via: Transmitter, LED Program Box, Program Port.
Firmware Upgrade: Not Supported.
Size & Weight: 25x15x5mm / 13g.
FLYFUN 30A Mini V5 Brushless ESC:
High Voltage/Regular: Regular
Cont./Peak Current: 30A/45A.
Input Voltage: 2-4S LiPo.
BEC Output: Switch Mode: 5.2V,3.5A/5A.
Input Wires: Red-16AWG-150mm*1 , Black-16AWG-150mm*1.
Output Wires: Black-16AWG-100mm*3.
Input Connectors: No.
Output Connecotors: 3.5mm Gold Connectors (Female).
ESC Programing via: Transmitter, LED Program Box, Program Port.
Firmware Upgrade: Not Supported.
Size & Weight: 37x17x5mm / 23g.
FLYFUN 30A V5 Brushless ESC:
High Voltage/Regular: Regular
Cont./Peak Current: 30A/45A.
Input Voltage: 2-4S LiPo.
BEC Output: Switch Mode: 5.1V/6.0V, 3A/7A.
Input Wires: Red-16AWG-150mm*1 , Black-16AWG-150mm*1.
Output Wires: Black-16AWG-75mm*3.
Input Connectors: No.
Output Connecotors: 3.5mm Gold Connectors (Female).
ESC Programing via: Transmitter, LED Program Box, Program Port.
Firmware Upgrade: Not Supported.
Size & Weight: 50x25x12mm / 32g.
FLYFUN 40A V5 Brushless ESC:
High Voltage/Regular: Regular
Cont./Peak Current: 40A/60A.
Input Voltage: 3-6S LiPo.
BEC Output: Switch Mode: 5.2V/6V/7.4V, 8A/20A.
Input Wires: Red-14AWG-150mm*1 , Black-14AWG-150mm*1.
Output Wires: Black-16AWG-75mm*3.
Input Connectors: No.
Output Connecotors: 3.5mm Gold Connectors (Female).
ESC Programing via:
