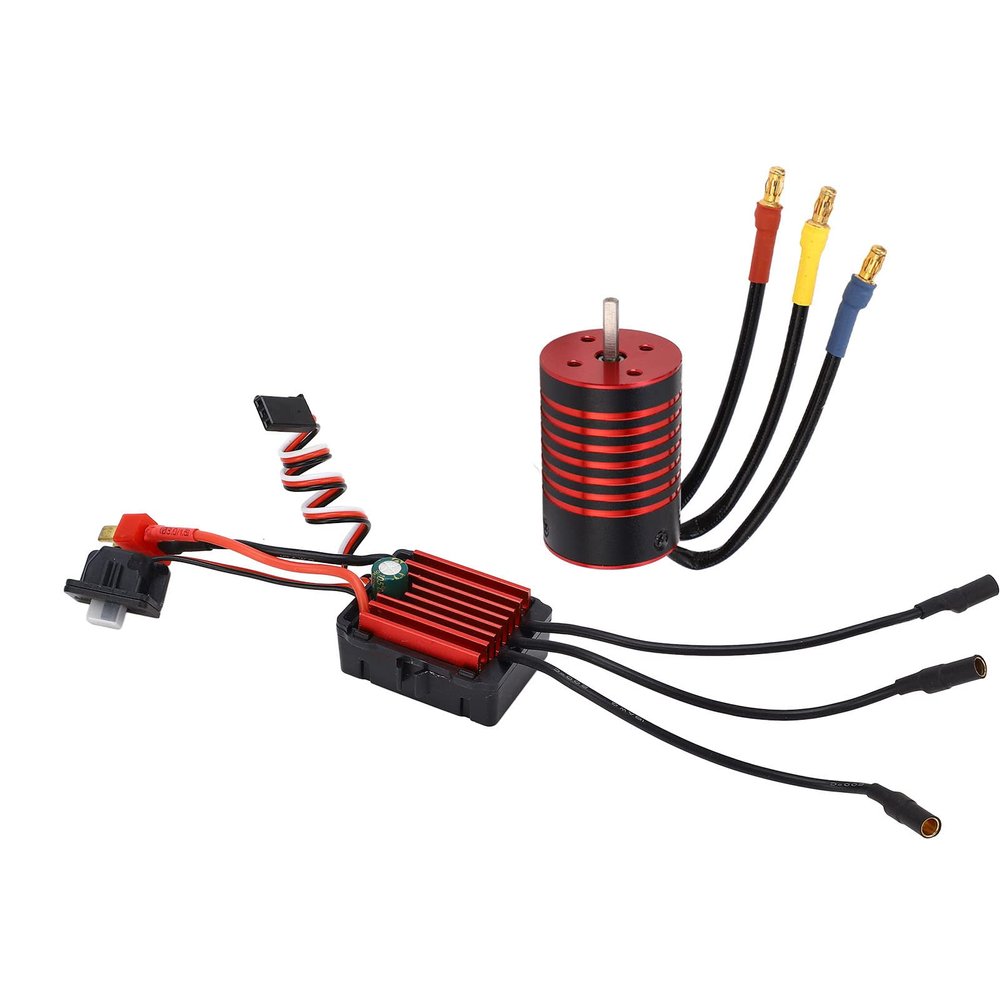

ANGGREK RC Car Brushless Motor, High 4 Pole 12 Slot Output Stable Power Practical Safe RC Brushless Electronic Speed Controller for 1/14 (#1)

Description

• Stainless Steel Output Shaft: RC car brushless motor has high purity temperature copper coil,with stainless steel output shaft, high accuracy bearings.
• Multiple Protection Functions Of ESC: The RC electronic speed controller has low voltage cut off protection, overheating protection, loss of throttle signal protection.
• Aluminum Front Rear Cover: RC car brushless motor has CNC machined aluminum front and rear cover, effectively providing high efficiency.
• 4 Pole 12 Slot Motor: Our RC car brushless motor is 4 pole and 12 slot design, and has strong torsion and stable output power.
• Suitable : Our RC car brushless motor ESC kit is suitable for HSP, for and for , for HPI and other 1/14 1/16 RC Car.

1. Suitable : Our RC car brushless motor ESC kit is suitable for HSP, for and for , for HPI and other 1/14 1/16 RC Car.
2. 4 Pole 12 Slot Motor: Our RC car brushless motor is 4 pole and 12 slot design, and has strong torsion and stable output power.
3. Multiple Protection Functions Of ESC: The RC electronic speed controller has low voltage cut off protection, overheating protection, loss of throttle signal protection.
4. Stainless Steel Output Shaft: RC car brushless motor has high purity temperature copper coil,with stainless steel output shaft, high accuracy bearings.
5. Aluminum Front Rear Cover: RC car brushless motor has CNC machined aluminum front and rear cover, effectively providing high efficiency.

Specification:
Item Type: Brushless Motor Set
Motor Parameters
Motor Size (Without Cable, Shaft): Approx. 28 x 40mm / 1.1 x 1.6in
Wattage: 600
Maximum Speed: 50000
Maximum Voltage: Maximum Amperage: 68A
Rotor Poles: 4
Shaft Diameter: Approx. 3.175mm / 0.13in
Shaft Length: Approx. 15mm / 0.59in
Connector: 3.5mm(0.14in) Gold Head, Male
ESC Parameters
Housing Material: Aluminum, Plastic
Color: Red, Black
Size (Without Cable): 40 x 32 x 15mm / 1.6 x 1.3 x 0.6in
Continuous Current: 35A
Peaking Current: 120A
Applicable Battery Voltage: 2-3S Lipo Or 4-9 Cells NiMH
BCE Output: 5V 2A (Analog Mode)
Suitable: For HSP And For And For And For HPI And Other 1/14 1/16 RC Car

How to Use:
1. There is no strict wire sequence requirement for the connection between motor and ESC, motor A or B or C can be connected to the three wires of ESC at will, if there is opposite direction, any exchange of two motor wires can be checked.
2. Before turning on the power of the RC car, please make sure to double check the correctness of the power system connection and the reliability of the installation.

packing list:
1 x Motor
1 x ESC
1 x Instruction Manual
