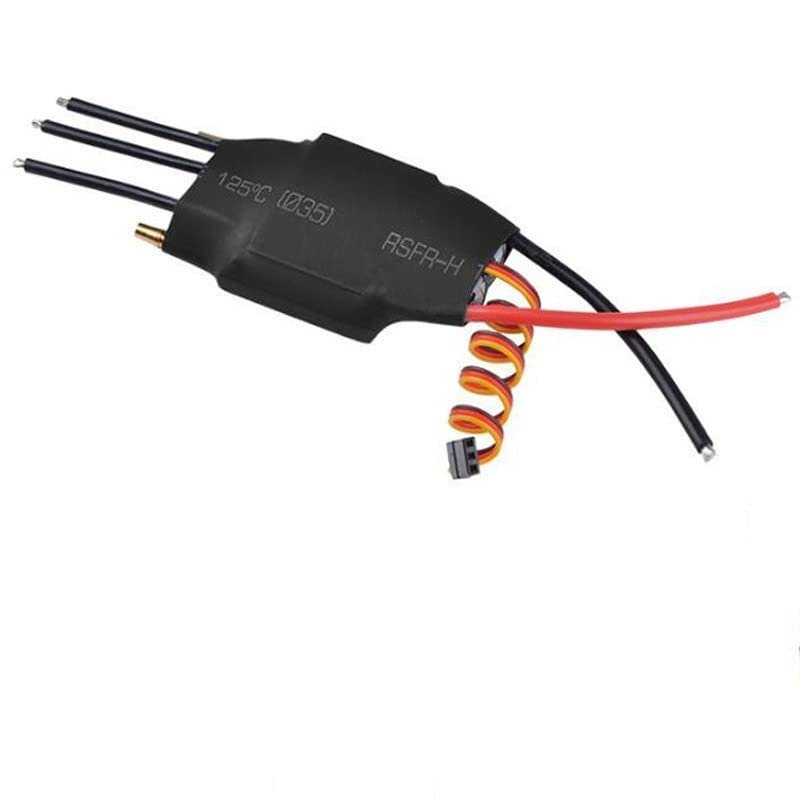

APEFIT RC Helicopter Aircraft Parts for Mitoot 60A 80A 100A 125A 200A Brushless Water Cooling Electric Speed Controller ESC with 5V/3A BEC for RC Boat Model Replaceable Accessories (Color : 200A)

Description

• Made of high-quality material, and less burrs and good texture. And with better wear resistance, the life time can be longer.
• Made of high-quality electronic components, the electronic performance is more stable.
• Tested in good condition,100% working!
• Long service life and easy to install.
• We are specializing in RC Cars, Boats, Planes accessories,etc. You can buy with confidence.

For Mitoot 60A 80A 100A 125A 200A Brushless Water Cooling Electric Speed Controller ESC with 5V/3A BEC for RC Boat Model

50A support 4S battery with 3A UBEC output with water-cooled one-way without back Dimensions: 53 * 40 * 16mm Weight 58 grams (including wire and water-cooled block)

70A support 6S battery with 5A UBEC output with water cooled one-way without back Dimensions: 75 * 41 * 18mm Weight 95 grams (including wire and water-cooled block)

125A support 6S battery with 5A UBEC output with water-cooled one-way without back Dimensions: 75 * 41 * 23mm Weight 120 grams (including wire and water-cooled block)

200A support 6S battery with 5A UBEC output with water cooled one-way without back Dimensions: 65 * 41 * 26mm Weight 140 grams (including wire and water-cooled block)
Marine two-way brushless ESC instructions

Basic Features:
1. Voltage range 4.8V-29.75V
2. 4 --- 12NIMH 2-7LIPO
3. Featured high-performance FET
4. Single LIPO protection voltage 3.0V
5. Continuous working current A / 50A / 80A / 100A / 200A instant 200A / 320A / 500A / 650A
6. PWM frequency 8K / 16K / 32K
7. Supports brushless sensorless motors for the vast majority of models with 14-pole motor speeds up to 30,000 RPM.
8.Waterproof design
Additional features:
Brake strength optional
Support reversing function (no reversing / 25% power reversing / 50% power reversing optional)
Support Banpo start
Throttle position error prohibited start
Automatically learn the throttle trip
The error signal turns off the power
Receiver no signal alarm, and turn off the output.

Packing: 1 pc, sent the item as your choose.
