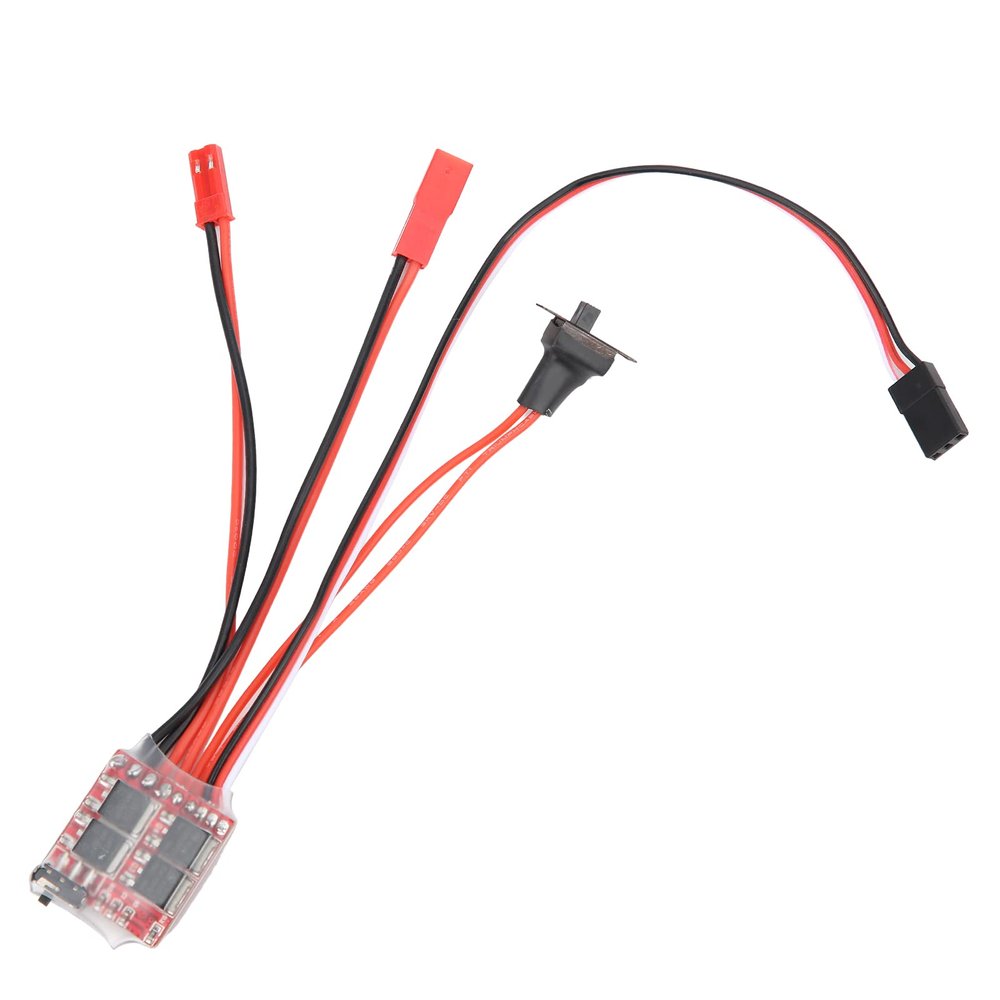

Aqur2020 20A ESC Electronic Speed Controller with Brake for RC Car Boat, 2KHz Driving Frequency, LED Status Indicator, 3.0V-9.4V

Description

• LED STATUS INDICATOR: Visual feedback system with LED lights provides real-time monitoring of remote control position and signal status for enhanced operational awareness
• BRAKE FUNCTION: Equipped with integrated braking capability for precise control and enhanced maneuverability, ideal for RC car and boat applications
• HIGH CURRENT CAPACITY: Supports continuous 20A operation with peak capacity of 80A instantaneous current, suitable for demanding RC applications with 2kHz driving frequency
• COMPACT DESIGN: Lightweight construction at approximately 0.39 ounces with dimensions of 1.18 x 0.91 x 0.2 inches, featuring direct mount design for quick and hassle-free installation
• WIDE VOLTAGE RANGE: Compatible with 3.0V to 9.4V operating voltage with PPM input signal type, includes audible tone confirmation for power connection and center position calibration

1. Connect the power supply. After the motor is connected and connected, a DO sound will be heard, which means the power is turned on normally.
2. When in the ddle position, the motor immediately displays DO BE . If it is not in the ddle position, the motor will make a DO sound.
3. Until the user goes to the central location, the DO tone will stop and immediately transmit DO BE and can work normally.
4. LED status: When the remote control is in the ddle position, the LED is half on or off; When you move forward or backward, the LED lights up completely. If there is no signal, the LED flashes.
5. 20A ESC with brake, specially designed for RC car boat , direct fit.

Technical data:
Condition: 100%
Item Type: ESC
Material: electronic components
Operating voltage: 3.0V - 9.4V
Input signal type: PPM
Drive frequency: 2 kHz
Output current: Continuous use: 20A. 30 sec. 25A. 5SEC 50A Instantaneous current 80A
Weight: approx. 11 g (including cable and plug)
Size: approx. 30 x 23 x 5 mm / 1.18 x 0.91 x 0.2 inch (length x width x thickness) (1-2 cm)
The line on JST, red is the positive terminal, black is the negative terminal
3P line black (negative), line (positive), white line (signal line)

Package list:
1 x controller
