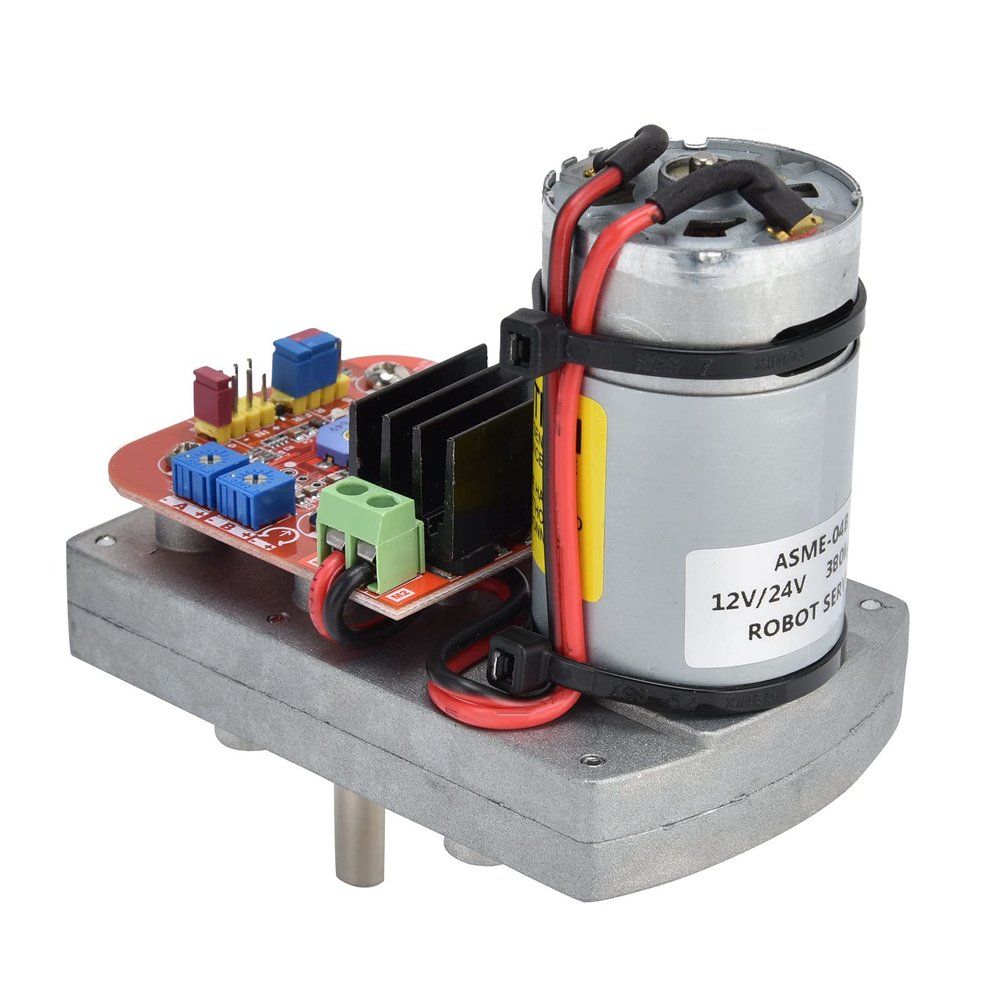

ASME04B Robot Servo High Power Motor, Aluminum Alloy Super Torsion Digital Steering Gear Mechanical Equipment, Support 12V~24V 380kg.cm, Perfect for Large Robots, Robotic Arms

Description

• Wide Application: This ASME-04B Robot Servo Motor is designed to cater to a wide range of applications, including robots, robotic arms, production lines, camera pan-tilt control robots, and more.
• Stable Performance: With its high stability, this servo motor ensures precise control over the steering gear, allowing it to work within a safe torsion range. Even under challenging conditions, such as strong winds, the steering gear can maintain reliable performance.
• Easy Installation: The servo arm plate features a D-hole anti-skid key connection, which is compatible with the ASMC ASME servo axle. This compatibility makes the installation process quick and hassle-freely, saving time and effort.
• Compatibility: The robot servo motor is perfectly compatible with popular remote systems such as Futaba, JR, Hitec, and more. This ensures seamless integration into existing setups, providing users with a convenient and versatile solution.
• High Torque: Boasting impressive torque capabilities, this servo motor can deliver a maximum torsion of 380kg.cm at 24V. With such strength, it can handle demanding tasks with ease, making it suitable for various industrial applications.

Specification:
Item Type: Robotic Servo Motor
Material: Aluminum Alloy
Model: ASME-04B
Maximum Torsion: 380kg.cm (24V) (Actual Measurement, Not Theoretically Calculated Value)
3648N.cm(24V) (Actual Measurement, Not Theoretically Calculated Value)
190kg.cm(12V) (Actual Measurement, Not Theoretical Calculation Value)
1824N.cm(12V) (Actual Measurement, Not Theoretically Calculated Value)
Angular Speed: 0.5s/60(0.5s is Needed for 60Rotation), at 24V;
1.0s/60(1.0s is Required for 60Rotation), at 12V;
Rotation Angle: 300Maxium
Input Mode: Pulse (Remote Control, Multi-Channel Steering Gear Controller, Single-Chip Microcomputer) or Analog Voltage (Potentiometer)
Pulse Input Range: 0.5ms-2.5ms Suitable for All Multi-Channel Steering Gear Controllers, 1ms-2ms Model Airplane Remote Control, MCU Programming, Etc.;
Voltage Input Range: 0V to +5V
Control Accuracy: 0.32
Rated Voltage: 12V~24V/DC (11V/Minium~30V/Maxium, Limit Voltage)
No-Load Current: 500mA (Current Limit: 5A, Recommended to Use A Switching Power Supply or Battery Greater than 5A)
Limit Angle: 150 or 0~300(Maxium) The Steering Gear Has Electronic Limit Adjustment
Analog Voltage Mode: 0V-5V Input Voltage (0.22V Corresponds to 0, 4.78V Corresponds to 300)
Material: Gear and Shaft: Alloy Steel; Gear Box: Cast Aluminum
Weight: Approx. 550g / 19.4oz
Dimension Size: Approx. 95 x 60 x 110mm / 3.7 x 2.3 x 4.3in
Mechanical Life: >1,000000 Cycles/Full Load (Conservative Value)
Limit Parameters
Limit Voltage: 11V-30V/DC(Maxium)
Current Limit Value: 5A0.2A(Maxium)
Working Angle: 150 or 0~300(Maxium)
RC Mode: 1ms Pulse Mode: 1ms~2ms (Pulse Width)/50Hz~333Hz (Frequency)
2ms Pulse Mode: 0.5ms~2.5ms (Pulse Width)/50Hz~333Hz (Frequency)

PackageList:
1 x Robotic Arm Servo
1 x Connection Line
