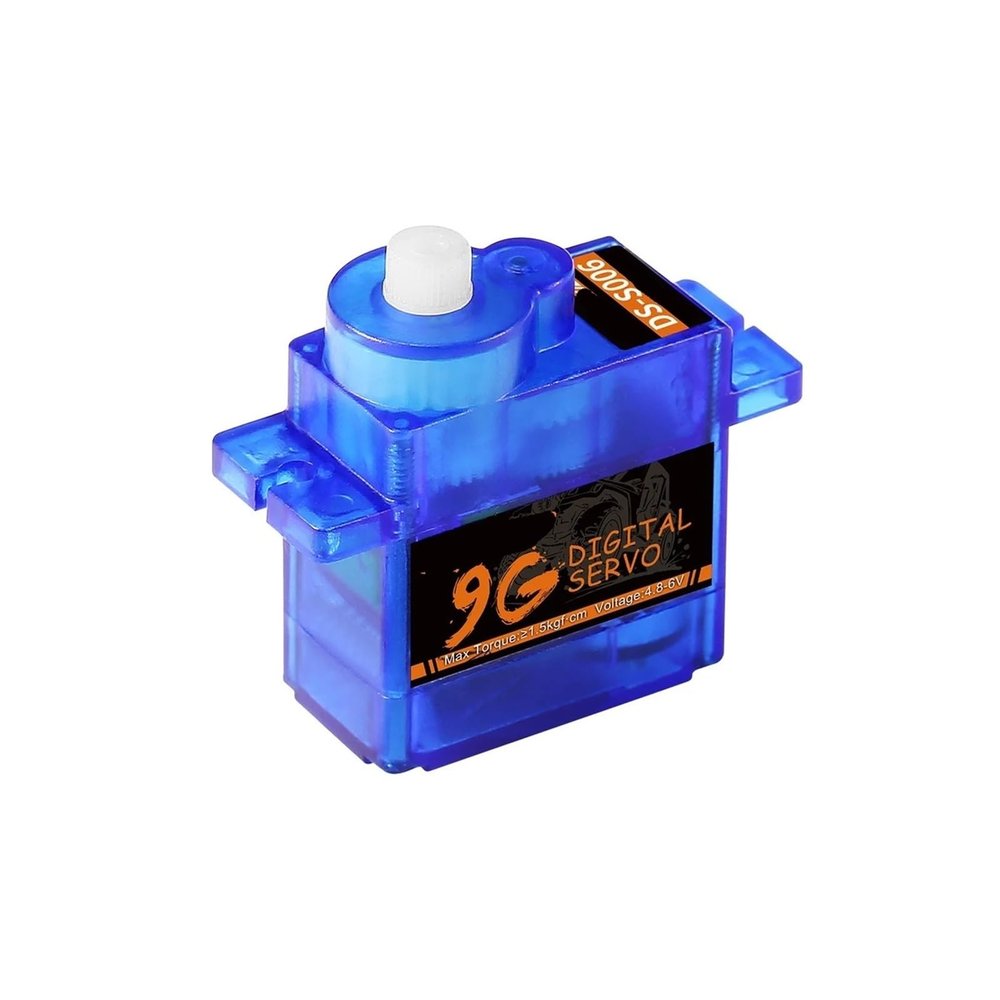

Blue 8g 9g 12g Digital Servo 1.5kg Torque High Precision with Mounting Arm Kit(9g with Mount)

Description

• Servo Gears

Servo Gears
Specification:
Product Name: S005
Quantity: 1 piece
Working voltage: 4.8~6.0V DC
Maximum torque: 4.8V1.10kgf.cm; 6.0V1.40kgf.cm
No-load speed: 4.8V0.14s/60; 6.0V0.12s/60
Stalled rotor current: 4.8V680mA; 6.0V780mA
Current consumption* (no load): 4.8V 130mA; 6.0V 150mA
Maximum action travel angle: 18010(500~2500s)
Dead zone width: 3us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Coreless motor
Case material: ABS
Gear set material: plastic gear
Weight: 8 g
Dimensions: 26.511.522.8mm
Connector cable length: JR 2005mm
Product name: DSpower S006
Quantity: 1 piece
Working voltage: 4.8~6.0V DC
Maximum torque: 4.8V1.30kgf.cm; 6.0V1.50kgf.cm
No-load speed: 4.8V0.13s/60; 6.0V0.11s/60
Stalled rotor current: 4.8V550mA; 6.0V650mA
Current consumption* (no load): 4.8V 50mA; 6.0V60mA
Maximum action travel angle: 18010(500~2500s)
Dead zone width: 4us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Iron core motor
Case material: ABS
Gear set material: plastic gear
Weight: 9 g
Dimensions: 27.31223mm
Connector cable length: JR 2505mm
Product name: DSpower S006M
Quantity: 1 piece
Working voltage: 4.8~6.0V DC
Maximum torque: 4.8V1.30kgf.cm; 6.0V1.50kgf.cm
No-load speed: 4.8V0.13s/60; 6.0V0.11s/60
Stalled rotor current: 4.8V700mA; 6.0V800mA
Current consumption* (no load): 4.8V 150mA; 6.0V170mA
Maximum action travel angle: 18010(1000~2000s)
Dead zone width: 3us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Iron core motor
Case material: ABS
Gear set material: metal gear
Weight: 13.5 g
Dimensions: 27.31223mm
Connector cable length: JR 2505mm
Product: SCX24 Servo Bracket
Material: Aluminum Alloy
Color: Black
Weight: 2 g
Package Included:
1 * Digital Servo
1 * Servo Arm Accessories
1* SCX24 Mounting Kit
