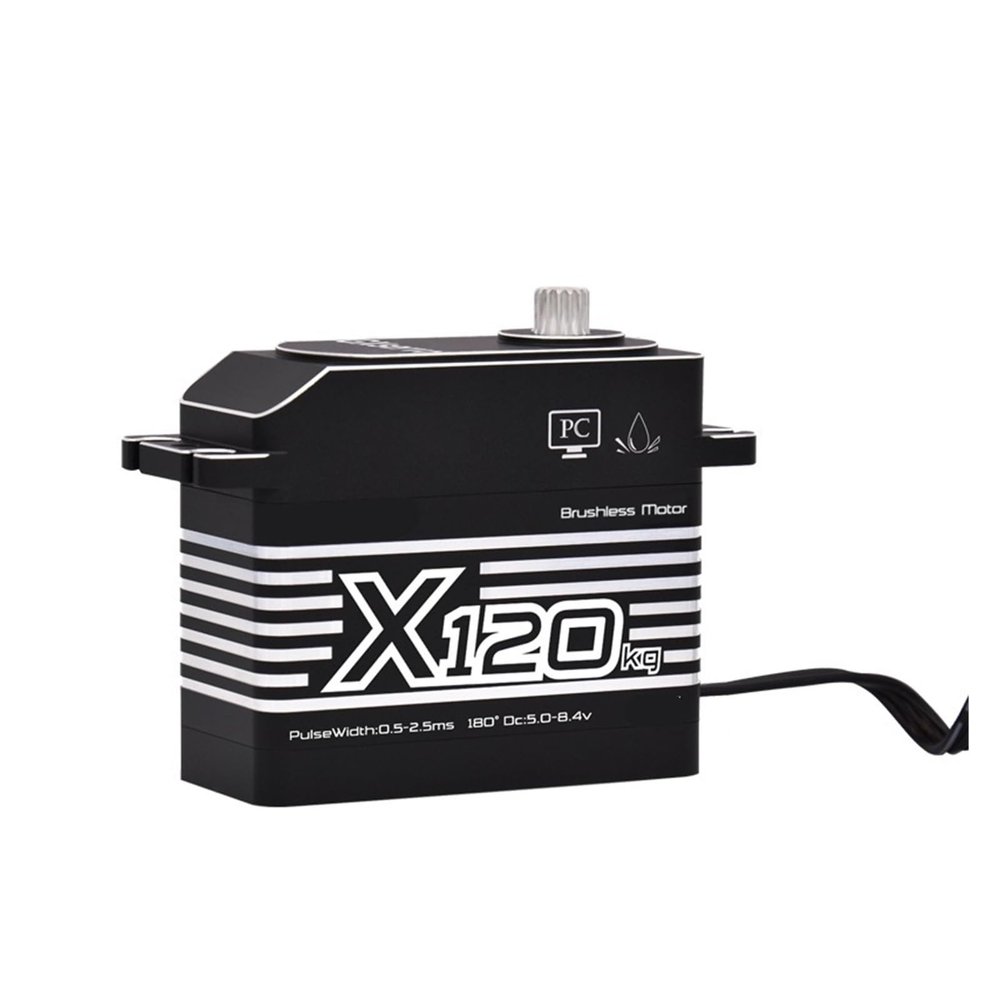

Brushless 120KG High Torque High Pressure CNC Aluminum Shell Metal Gear Waterproof Servo Suitable for 1/5

Description

• Servo Gears

Servo Gears
Model: X120
Pulse width: 500s-2500s=180/270/360
Operation speed: (6.0V) 0.16sec60
Operation speed: (7.4V) 0.14sec60
Operation speed: (8.4V) 0.13sec60
Stall torque (6.0V): 110kg.cm
Stall torque (7.4V): 120kg.cm
Stall torque (8.4V): 135kg.cm
Working voltage: 6.0V-8.4V
Gear Type: Steel
Motor: Brushless motor
Dead zone: 2s
Ball bearing: 3BB
Working frequency: 1520s/330hz
Shell material: CNC aviation aluminum alloy
Number of spline teeth: 15T
Control system: customizable (PWM, RS485, TTL, CAN)
Size: 65*30*58mm
- Weight: 210 g
Due to the different monitor and light effects, the actual color may be slightly different from the picture color.
Please allow 1-3mm errors due to manual measurement.
notes:
Due to the different monitor and light effects, the actual color may be slightly different from the picture color.
Please allow 1-3mm errors due to manual measurement.
