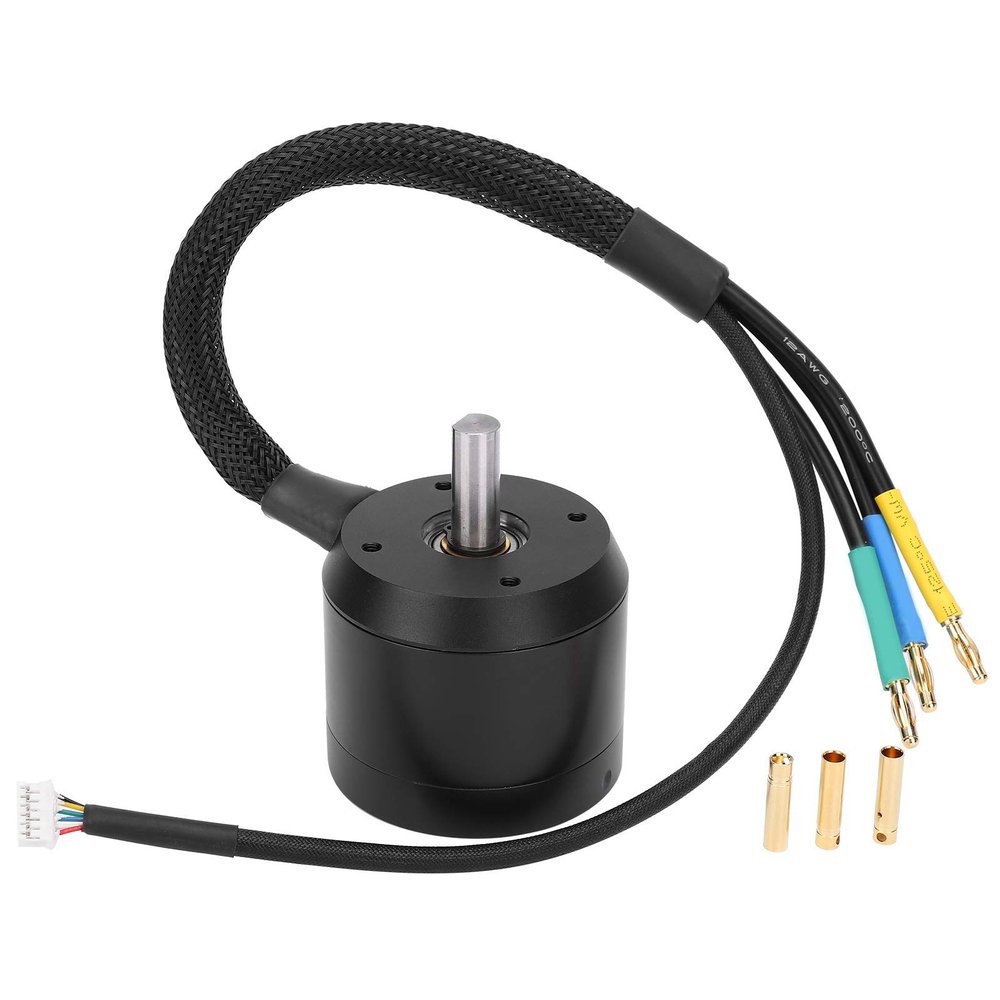

Brushless DC Motor for Electric Skateboarding Battle Hardening DC36V 6354 140KV 2450W +3pcs Connector Terminal,Dedicated Motor

Description

• Hardening: completely paste the magnet, use resin and balance glue to maintain good balance performance
• Hall plate is tightly fixed on the stator, more firm and not easy to fall off, which helps the motor to run more stably
• Double-sided arc magnets increase the suction power, exert an excellent mute effect, and improve the lasting quality. The convex magnet display can better match the work with the VESSC foc mode and greatly reduce the noise
• 12AWG 400mm overlength Hall wire, more heatresistant, come with knitted sleeves, more refined details,Brushless DC motor adopt 42SH magnet, to high temperature of 115 degrees Celsius
• If you have any questions about the product or are not satisfied with the product, please feel to us and we will provide you with the best solution.

Specification:

Item Type: Brushless DC Motor
Material: Aluminum + copper
Model: Upgraded version 6354 motor
Specification:
KV Value: 140KV
Maximum Power: 2450
Maximum Current: 65 amps
Maximum Voltage: 12S
Maximum Torsion: 7Nm
Motor : 0.053Ohm
Recommended ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)
Weight: 0.56 kg / 1.23 lb(approx.)
Motor Length: Approx. 54mm / 2.1in
Motor Diameter: Approx. 63mm / 2.5in
Shaft: Approx. 10mm / 0.4in Diameter, D Shaft Length: Approx. 24mm / 0.9in
Motor Wire: Approx. 320mm / 12.6in silicone 12AWG wire, with approx. 4mm / 0.2in golden male head
Wire Configuration:
Blue = A
Black = B
Yellow = C
Brushless DC motor
Number of Poles: 14
Size: Approx. 4mm / 0.2in
300mm / 11.8in 10mm
400mm / 15.7in 10mm
54mm / 2.1in 0.8mm
24.2mm / 1in 0.5mm
18mm / 0.7in
8.5mm / 0.3in
Diameter: Approx. 63mm / 2.5in 0.5mm
44mm / 1.7in 0.5mm
10mm / 0.4in

Package List:
1 x Brushless DC Motor
3 x Connector Terminal

Note:
1. The screws used in the motor are M4 metric system bolts. It is recommended to use motor mount and M4 hex socket bolts.2. Screws for mounting the motor are not included with the motor.
