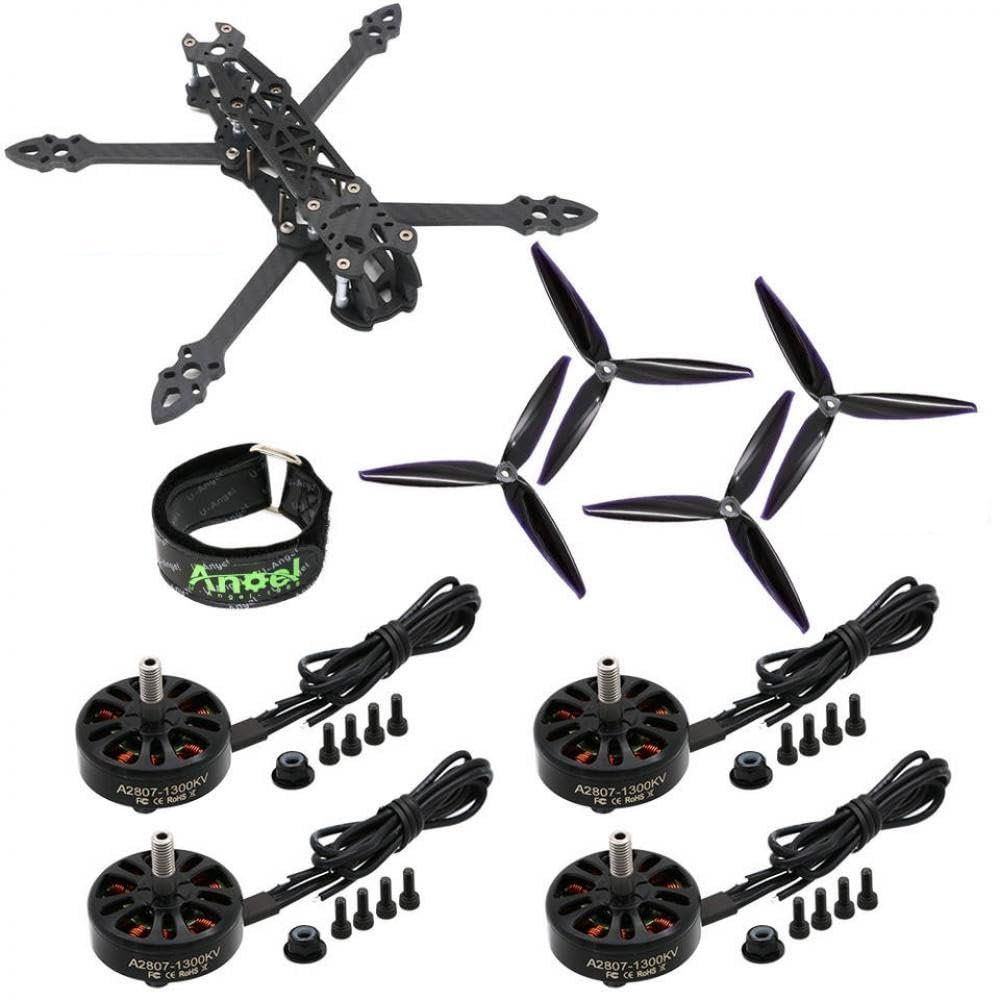

Carbon Frame Compatible with 7inch Mark 4 Drone With 295mm Wheelbase 28071300KV Brushless Motor 7040 And 60A ESC F4V3S Compatible with Long Range Compatibility(Sample no FC)

Description

• Elevate your drone experience with the Mark 4, designed Compatible with long-range flying.
• Discover unmatched versatility with a 7-inch design, which balances agility and stability.
• Leverage the robust 295mm wheelbase that enhances control and withstands various weather conditions.
• Power your flights using the 28071300KV brushless motor delivering reliable performance.
• Enjoy extended flight times thanks to the efficient 60A ESC, optimizing power management.

Mark4-7inch Drone Frame Features:
- Size: 7 inch
- Weight: 121g
- Motor to Motor Distance: 295MM
- Dimensions: 193*223MM
- Arm Plate Thickness: 5MM
- Plate Thickness: 2.5MM
- Bottom Plate Thickness: 2.5MM
- Side Plate Thickness: 2.5MM
- Camera Mount Size: 19.3mm
60A 4-in-1 ESC Specifications:
- Installation Size: 30.5mm x 30.5mm
- Mounting Hole: M4
- Supports Shock-absorbing Column Installation
- Onboard Current Sensor
- Continuous Current: 60A
- Instantaneous Current (5 seconds): 70A
- Firmware: BLS J_H_30_REV16_7
- On-board filter capacitors to suppress back electromotive force and stabilize voltage
F4 Flight Control Features:
- Supports receivers in sbus or ppm mode; compatible with CRSF protocol (e.g., TBS and ELRS receivers); does not support traditional PWM receivers
- Compatible with INAV firmware; supports GPS with magnetic compass Compatible with fixed-point function
- Supports rescue mode
- Connects to O3 air unit via soldering (no separate air unit interface)
- Main Control Chip: F405
- No memory card needed Compatible with parameter adjustment, can be done via USB data
Recommended Parts (not included):
- Camera: cameras like RunCam / Foxeer with 2.1/2.5/2.8 wide-angle lens
- VTX: 600mW / 1300mW / 2500mW Transmitter
- : 4s-6s Lipo
