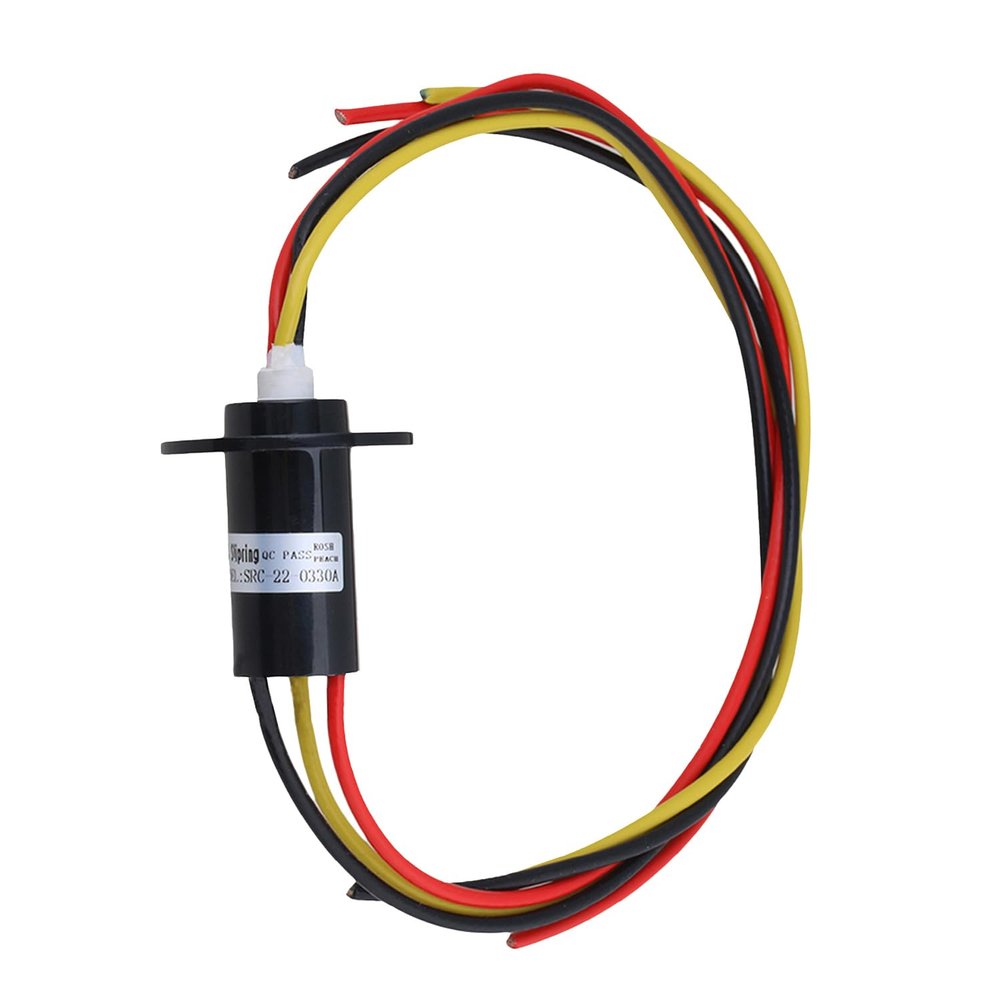

CNBTR Slip Ring, 240V, 3 Wire, 30A, 22MM Bore Electrical Rotary Connector

Description

• Compact Capsule Design: The size with only 22mm thru hole diameter, suitable for limited installation space in precision equipment, small rotating joints, PTZ cameras, and small automated machinery
• Premium Gold-on-Gold Contacts: Adopts industrial-grade gold contacts for ultra-low contact resistance, minimal electrical noise, and stable power/signal transmission even in high-speed rotation
• Low Noise Operation: Adopts precision brush and gold-plated contact design, ensuring low friction, low electrical noise, stable contact, and long-term maintenance-free operation even under high-speed continuous rotation
• 3 Circuits 30A Capacity: Supports 3 independent circuits with 30A current per channel and 240V working voltage, reliably transmitting power and control signals without interference or signal loss during 360 rotation
• 360 Unlimited Rotation: Enables unrestricted continuous rotation while transmitting power and signals, effectively preventing wire winding and breaking, widely used in rotary joints, sensors, and testing equipment
• Wide Industrial Compatibility: Suitable for robotics arms, security cameras, medical devices, automated production lines, rotary tables, and other small precision rotating transmission systems
• Durable Construction Materials: Features silver-plated copper wire and engineered plastics housing with gold contact material, operating reliably in temperature range from -20C to +60C

Product Description

This 22mm thru hole miniature capsule slip ring is specially designed for small precision electromechanical equipment that requires 360 continuous rotation and multi-channel signal or power transmission. With a compact 22mm diameter structure, it can easily fit into narrow installation spaces while providing stable and reliable electrical connection.

The slip ring supports 3 independent circuits, each capable of carrying up to 30A current at 240V working voltage, making it suitable for both power supply and low voltage signal transmission. Gold plated contacts and precision machining ensure low contact resistance, low noise, and stable performance during long term rotation.

It effectively solves the problem of wire twisting and breaking in rotating components and is widely applied in PTZ cameras, robotic joints, automatic test equipment, medical instruments, rotary worktables, and various small automation devices. Stable performance, easy installation, and long service life make it an ideal component for precision rotary transmission systems.

SPECIFICATIONS

Model Number: 11430013
Thru Hole Diameter: 22mm
Overall Length: 52mm
Flange OD: 45mm
Operating Speed (max.) : 250 RPM Continuous
Data Speed (max.) Under 50 Mbps (non-Ethernet)
Standard Circuit Options: 3
Voltage [AC/DC] (max.): 240V
Amps: 30A Per Circuit
Wire Material: Silver-Plated Copper
Electrical Noise (max.) : 60 Milliohms
Contact Material: Gold
Housing Material: Engineered Plastics
Temperature Range: -20C to +60C

Package Includes:
1xSlip Ring
