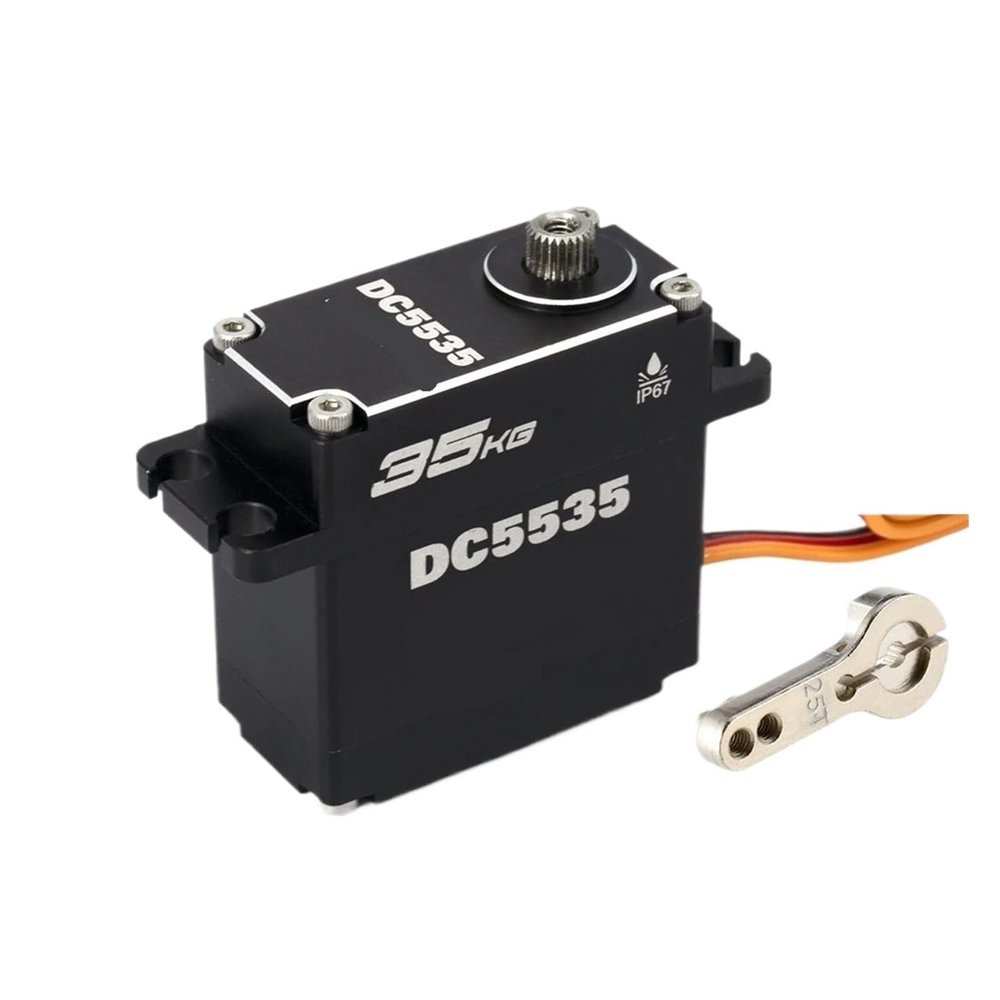

DC5535 35 kg Waterproof Digital servo 180/270/360 All Aluminum housing Stainless Steel Gear high Torque Suitable for 1/8 1/10(35kg 360)

Description

• Servo Horns

Servo Horns
Specification:

Model: DC5535
Color: Black
Control angle: 180/270 optional
Gear material: Metal gear
Case material: All-aluminum case
Control system: PWM control (center point 1500usec)
Operating voltage range: 4.8V -7.4V
Storage temperature range: -30~80
Operating temperature range: -20C~ +60C
Cycle times: >80,000 times (no load)
Operating stroke: 601
Limit angle: 1801/2701 optional
Direction: Clockwise/Pulse travel 500-2500 seconds
Diver Type: Mos Drive
Motor type: DC motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control
Waterproof performance: IP67
Dimensions: 40x20x40.50mm
Weight: 80g (excluding servo speaker)
Test voltage: 5V/6V/7.4V
Idle current (stop): 270mA@5V / 320mA@6V / 360mA@7.4V
Working speed (no load): 0.37 seconds/60@5V; 0.3 seconds/60@6V; 0.25 seconds/60@7.4V
Stall torque (locked): 24.9kg-cm@5V; 30kg-cm@6V; 35.1kg-cm@7.4V
Operating current: 1.9A@5V; 2.3A@6V; 2.8A@7.4V
Dead band width: 2sec
Ball bearing: 2BB
Cable length: 300MM JR connector wire gauge: 22AWG
Wire information (brown): negative pole
Wire information (red): positive
Wire information (black): negative
Wire information (yellow): S Sinqle
Package Included:
1 x 35KG Waterproof Digital Servo
1 x 25T adjustable metal servo arm
1 x 25T round servo horn
