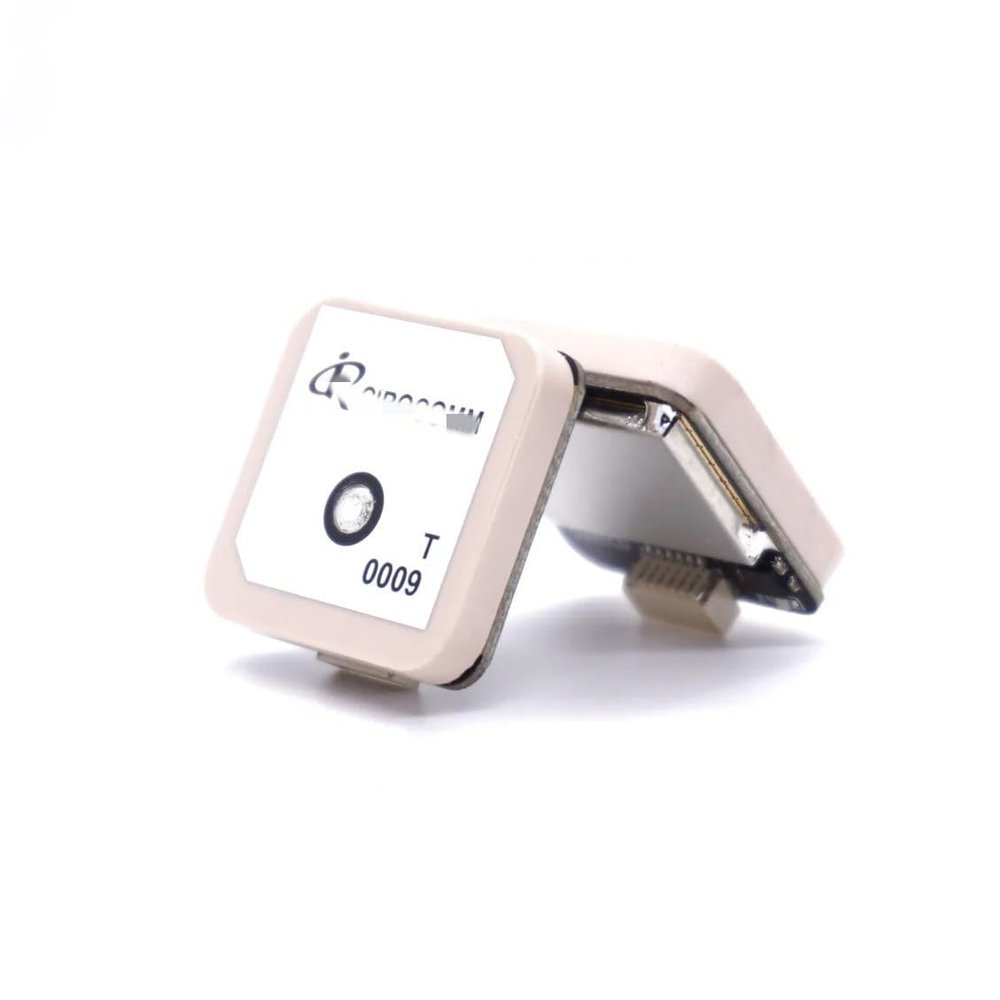

ELOMAS Drone accessories For MG-A01 M10 GPS 25mm standard size with Compass QMC5883L Module For FPV/Racing Drones/Robotics/Boats replaceable

Description

• 1. For MG-A01 supports concurrent reception of GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals.
• 2. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons. For u-blox Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy in non-line-of-sight scenarios.
• 3. The high-gain 25 x 25 x 4 mm antenna from CIROCOMM provides the best performance for GNSS receiver. The omnidirectional antenna radiation pattern increases flexibility for device installation.
• 4. GNSS For u-blox M10050 (GPS, GLONASS, Galileo and BeiDou)
• 5. We are specializing in RC Cars, Boats, Planes accessories,etc. You can buy with confidence.

For MG-A01 M10 GPS 25mm standard size with Compass QMC5883L Module For FPV/Racing Drones/Robotics/BoatsMG-A01 module uses multi-constellation GNSS chip powered by For u-blox M10050.Magnetic Compass QMC5883LPatch antenna 25*25*4mmInput voltage range: 46V (5V pad/pin)Power consumption: 30mAUART baudrate: 115200 defaultOperating Temperatures: -2080 CUART(TX, RX) interface for M10050I2C(DA, CL) interface for Compass QMC5883LSH-1.0 6P connector ,1.00mm pitchGNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)Protocol: For UBX(For u b x) 10Hz@GPS+GAL+BDS or NMEA 1Hz25mm*25mm*8mm 12g
