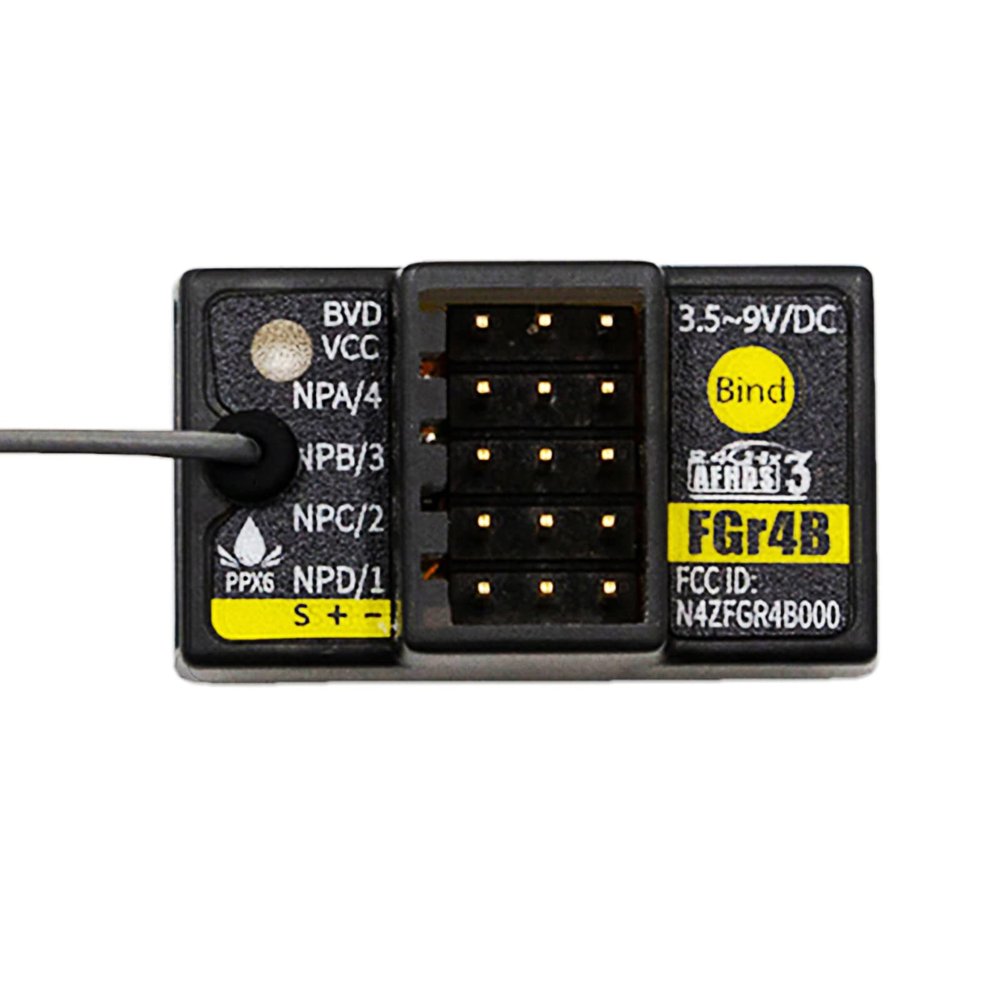

HTLNUZD Flysky FGr4B 4CH AFHDS 3 Receiver for RC Car Boat 2.4Ghz PWM/PPM/i-Bus/S.Bus/i-bus2 Output Compatible FS PL18 NB4 Lite NB4 Transmitter

Description

• Compatible transmittersIt supports all AFHDS3 transmitter.including FlySky PL18,NB4, NB4 Lite Transmitter.
• System settingsThe FGr4B receiver adopts Flysky's third-generation automatic frequency hopping digital system (AFHDS 3).
• AntennaDual Antennas bidirectional transmission system and is uniquely designed to install and output PWM/PPM/i-bus/S.BUS/i-bus2 in signals.
• Small and easy to storeCompact size and light-weight design,easy installation, Whether it is going out to carry or storage storage, it is portable.
• The failsafe functionoutput the channel according to the out-of-control protection value set by the user after the receiver loses its signal and is out of control to protect the model and personnel.

The FGr4B receiver is compatible with all AFHDS 3 transmitters
(Note: It is currently applicable to PL18 1.0.55, NB4 2.0.93 and NB4 lite 1.0.10 and later versions.
The high-frequency library used by the firmware is version 3.0).
Binding
Press and hold the receiver BIND button [5] while powering on the receiver,
release the BIND button after receiver is powered on or powering on
the receiver first, press and hold the BIND button 3 seconds ,
the LED [7] on the receiver will flash rapidly
Put the transmitter into bind mode
The binding process is complete when the LED on the receiver stops flashing and is on continuously.
If a transmitter that has had its radio frequency (RF Standard) set to AFHDS3 1 way
(please refer to your transmitter user manual) enters bind mode, the receiver LED will instead flash slowly.
Exit bind mode on the transmitter and if the receiver LED stops
flashing and is on continuously, the binding process is complete.
Check to make sure the transmitter and receiver functions are
working correctly, repeat steps 1 to 3 (binding process) if any problems arise.
Product Designation: FGr4B
Compatible transmitters:all AFHDS 3 transmitters and RF Modules (PL18, Paladin EV, NB4, NB4 Lite, etc.)
Model Type: Car/boat etc
PWM Channels: 4
RF: 2.4GHz
Protocol: AFHDS 3
Antenna:Dual Antennas
Input Power:3.5-9V
Data Output: PWM/PPM/i.BUS out/S.BUS
Temperature Range: -10 to +60
Humidity Limit: 20%-95%
Online Update:Yes
Dimensions: 17*29*16mm
Weight: 6.4g
Package Included:
1 x FGr4B Receiver
