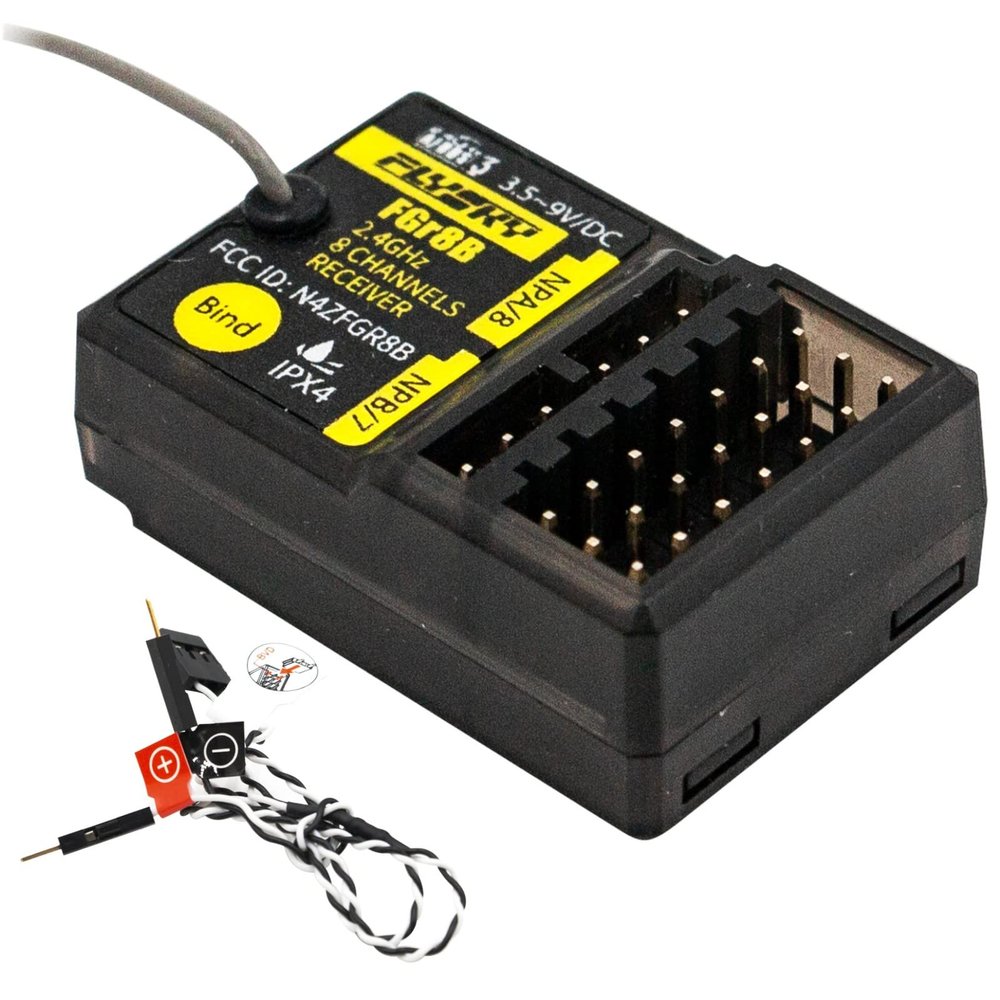

HTLNUZD Flysky FGR8B 2.4GHz 8CH Remote Control Receiver, Output AFHDS 3 PWM/PPM/i-Bus RF Modules Compatible FS PL18 / Noble NB4 Pro / NB4 Lite/ FRM302 Transmitters for Rc Car Boat

Description

• size & weight1.37*0.91*0.52 inch (35*23.3*13.3mm) Weight: 9.4g.
• Good compatibilityCompatible with all AFHDS 3 transmitters and RF modules including PL18, NB4, NB4 Lite, FRM302, etc.
• High configurationThe FGr8B receiver adopts Flysky's third-generation automatic frequency hopping digital system (AFHDS 3).
• Convenient storageWith a compact size and light-weight, no worry to give any burden to your RC Model, Very convenient for storage and storage.
• Data OutputIt uses a single-antenna bidirectional transmission system and is uniquely designed to install and output PWM/ 8 Channels/PPM/i-bus in signals.

Binding instruction and hard update firmware
Put the transmitter into bind mode.
The binding process is complete when the LED on the receiver
stops flashing and is on continuously.
Press and hold the receiver BIND button [11] while
powering on the receiver, release the BIND button after
receiver is powered on, the LED [12] on the receiver will flash rapidly.
If a transmitter that has had its radio frequency
(RF Standard) set to AFHDS3 1 way (please refer to your transmitter user manual)
enters bind mode, the receiver LED will instead flash slowly.
Exit bind mode on the transmitter and if the receiver
LED stops flashing and is on continuously, the binding process is complete.

Check to make sure the transmitter and receiver functions
are working correctly, repeat steps 1 to 3 (binding process) if any problems arise
Hard update firmware
If after a firmware update is performed and the transmitter
is unable to bind to the receiver, the receiver may need to be
put into forced update times.

Power on the receiver while pressing the BIND button [11] for
then approximately ten seconds until the LED [12] flashes three times,
release the BIND button.
Go to the RX Setup menu on your transmitter and selectRX Update.
When the receiver LED flashes slowly, the update is successful.
Product Model: FGr8B
Adaptive transmitter: all transmitter supporting AFHDS3
(PL18, NB4, NB4 Lite, etc.)
Model Type: Car/Boat ect.
PWM Channels: 8
RF: 2.4GHz
2.4G Protocol: AFHDS 3
Antenna: Single Antenna
Input Power: 3.5-9V
Data Output: PWM\PPM\i-busin
Temperature Range: -10+60
Humidity Limit: 20%-95%
Package:
1 x FGr8B Receiver
