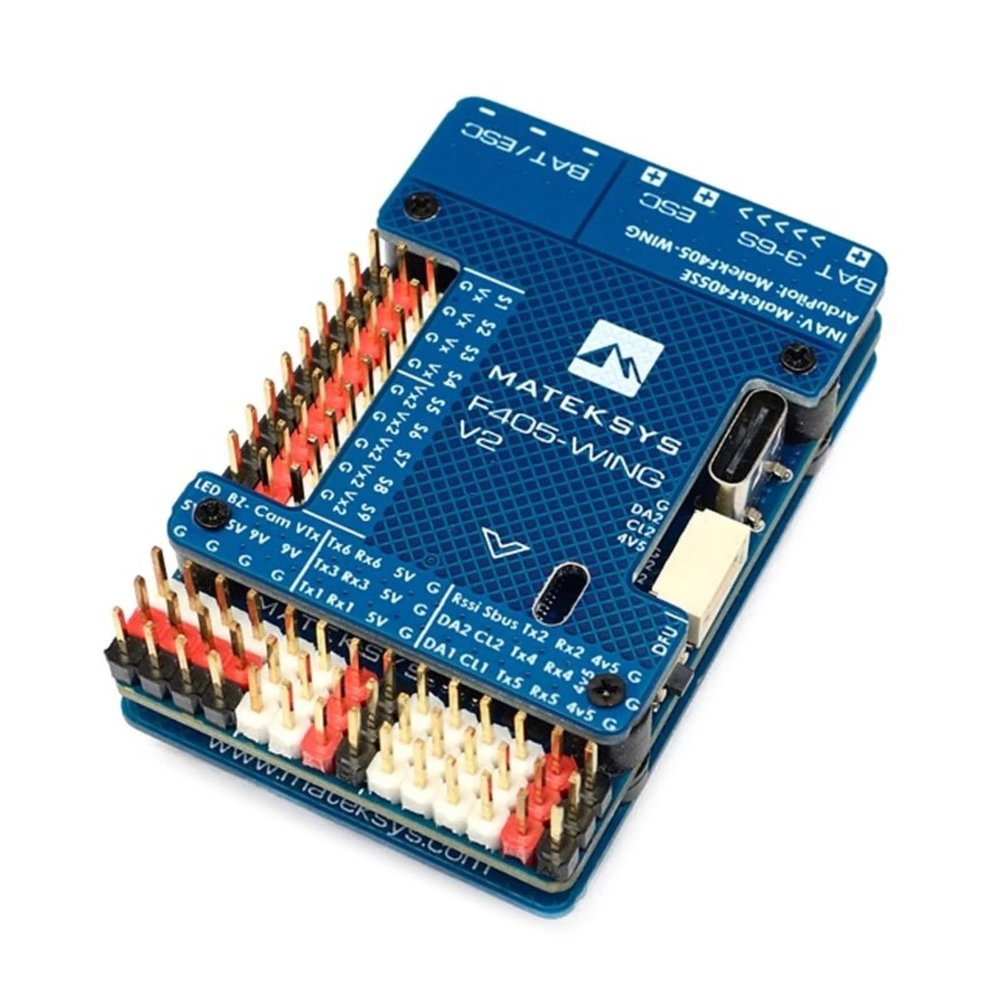

HTLNUZD Mateksys F405 Wing V2 Flight Controller STM32F405RGT6 ICM42688P, OSD, SD Slot ArduPilot/INAV for RC Aircraft

Description

• POWERFUL MCU & PRECISE SENSORS: STM32F405RGT6 (168MHz, 1MB Flash) with ICM42688-P IMU, DPS310 baro & AT7456E OSD for stable, accurate flight
• VERSATILE CONNECTIVITY: 6 UARTs, 10 PWM outputs, 2 I2C, 3 ADC & SBUS inverter. MicroSD slot for blackbox data logging
• COMPATIBLE FIRMWARE: Supports ArduPilot (MatekF405-Wing, 4.4+) & INAV (MATEKF405SE, 6.0+). USB-C for easy setup
• ROBUST POWER SYSTEM: 9-30V input (3-6S LiPo) with 220A current sensor. 5V/9V/12V/Vx BECs for peripherals & servos
• MULTI-DEVICE SUPPORT: Powers receiver, camera, VTX, GPS & more. 5A Vx BEC (adjustable) for servos; 2A for 5V/9V/12V

FC Specifications
MCU: STM32F405RGT6, 168MHz , 1MB Flash
IMU: ICM42688-P
Baro: DPS310
OSD: AT7456E
Blackbox: MicroSD card slot
6x UARTs, 1x Softserial_Tx option(INAV)
10x PWM outputs
2x I2C
3x ADC (VBAT, Current, RSSI)
Built in inverter for SBUS input
USB Type-C(USB2.0) FC Firmware
ArduPilot: MatekF405-Wing (ArduPlane 4.4 or newer)
INAV: MATEKF405SE (INAV 6.0 or newer)
PDB
Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
Current Senor: 220A, 3.3V ADC (INAV scale 150, ArduPilot 66.7A/V)
Sense resistor: 100A continuous, 220A peak
Battery Voltage divider 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
BEC 5V output
Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps
BEC 9V /12V output
Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current: 2 Amps
12V option with Jumper pad
for stable 9V/12V output, input voltage should > output voltage +1V
BEC Vx output
Designed for Servos
Voltage adjustable, 5V Default, 6V or 7.2V options
Continuous current: 5 Amps, 6A Peak
for stable Vx output, input voltage should > Vx voltage +1V
BEC 3.3V output
Designed for external 3.3V peripherals
Linear Regulator
Continuous current: 200mA
Physical
Mounting: 30.5 x 30.5mm, 4mm with Grommets 3mm
Dimensions: 54 x 36 x 13 mm
Weight: 25g
Including
1x F405-Wing-V2
1x 20cm JST-GH-4P to JST-GH-4P cable for I2C port
Dupont 2.54 pins (Board is shipped unsoldered)
