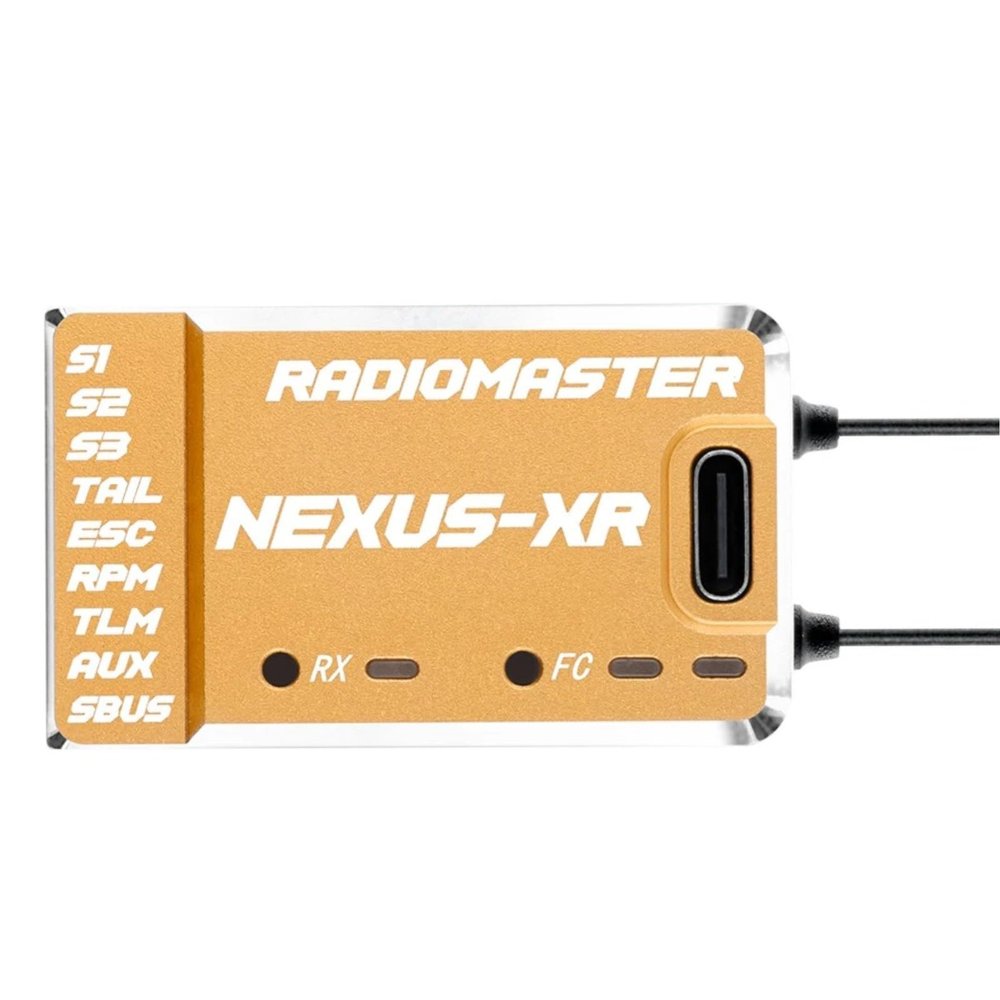

HTLNUZD Radiomaster Nexus-XR Helicopter for Flight Controller with Integrated 2.4G ELRS Receiver (Golden)

Description

• INTEGRATED EXPRESSLRS RECEIVER: Dual Semtech SX1281 2.4GHz transceivers for seamless RF performance, no external receiver needed. Dual 65mm antennas boost signal strength and range
• OPTIMIZED FOR ROTORFLIGHT 2.2: Engineered for peak performance and full compatibility with Rotorflight 2.2, ensuring smooth, responsive flight control
• PRECISION CONTROL SYSTEM: STM32F722 MCU + ICM42688P 6-axis gyro/accelerometer deliver superior flight dynamics. 256MB flash for detailed logging
• RUGGED & VERSATILE DESIGN: CNC-machined aluminum case acts as heat sink. Multiple UART ports support CRSF, ELRS, S.BUS; extra PWM pins for complex setups
• RUGGED & VERSATILE DESIGN: CNC-machined aluminum case acts as heat sink. Multiple UART ports support CRSF, ELRS, S.BUS; extra PWM pins for complex setups

Specification
Improved BEC: Stable, reliable power delivery to electronics for enhanced performance.
1. Improved BEC: Stable, reliable power delivery to electronics for enhanced performance.
2. Firmware: Pre-installed Rotorflight 2.2 for optimal compatibility and flight performance.
3. Core Hardware: STM32F722RET6 MCU & ICM42688P gyro (IMU) for precise flight dynamics.
4. Flash Memory: 256MB (W25N02KVZEIR) for detailed black box logging and system tuning.
5. UART Ports: 5 ports supporting S.BUS, TELEM, PORT-A/B/C for versatile connectivity.
6. Servo Support: S1-S3 & TAIL servos (up to 12V); compatible with 760s/1520s tail servos.
7. Integrated Receiver: RP4TD-M ExpressLRS 2.4GHz (2x SX1281, 2x 65mm antennas) with multi-protocol support.
8. Power Range: 3.6-70V ext input; 5-16V supply; 5V 1.5A A-B-C serial port output.
9. ESC Compatibility: Supports PWM, Oneshot, Multishot, Dshot; works with tail ESC and motor.
10. Dimensions & Weight: 44.70x26.50x14.30mm; 24.1g, housed in CNC-machined aluminum case.
