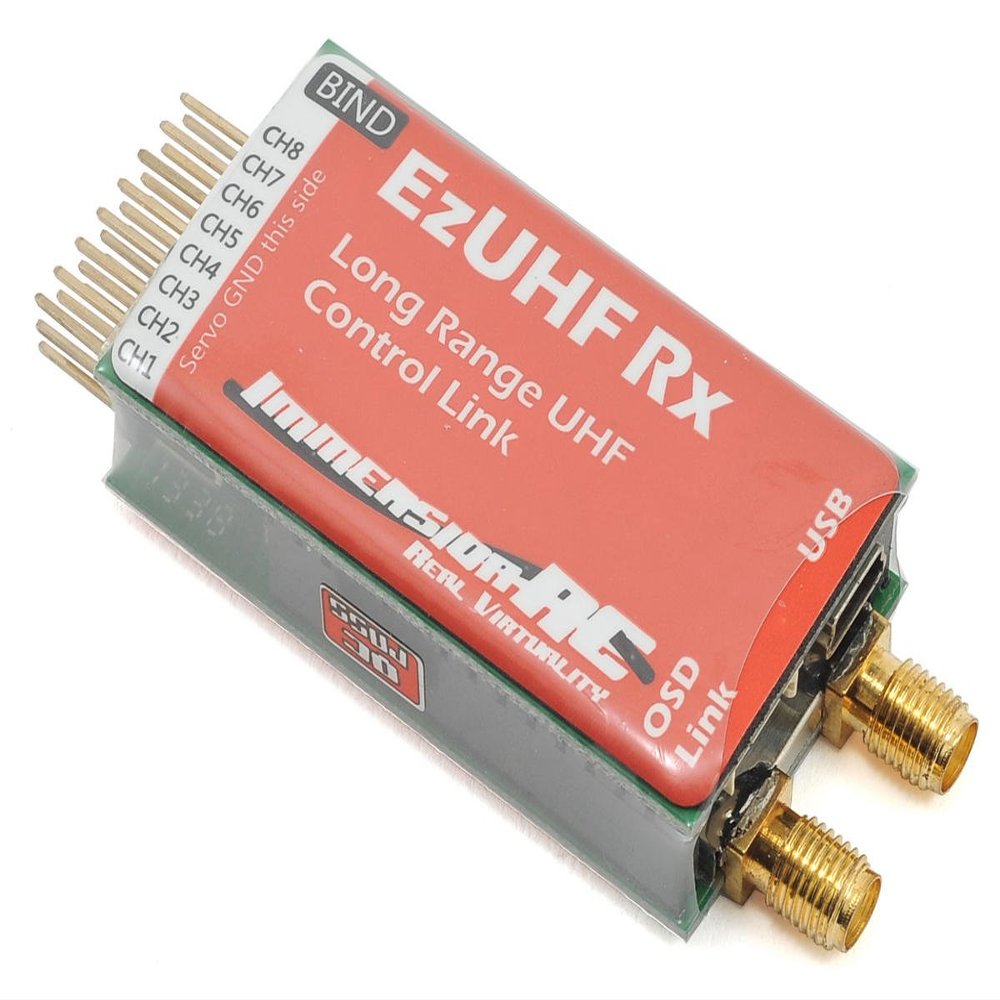

ImmersionRC EzUHF 8-channel Diversity Receiver

Description

• Up to 12 Channels using PPM | up to 8 PWM Outputs
• 8 User-Assigned Outputs (as PWM, PPM, RSSI, LinkQ..)
• Diversity Receiver (Stronger Signal Selected for Output)
• Compatible with all EzUHF Transmitters
• Power Supply: 4.8 to 7.4VDC (2S LiPo)

ImmersionRC EzUHF 8-channel Diversity Receiver
Description: User Manual
Brand Name:ImmersionRC
Item Name:EzUHF Receiver
Connector:SMA Female
Antenna Connector:SMA Male
Power Requirements: 4.8~6V, 35mA (Rx mode), 95mA (Tx mode)
Dimensions: 70x28x18mm
Weight: 19g
Features:
Reliable FHSS Link (Frequency Hopping, Spread Spectrum)
433MHz/70cm Ham band operation
-112dBm Sensitivity
Bi-directional ready * (contains onboard transmitter)
Diversity Antenna configuration
Ceramic filtered inputs, eliminates nearby high-power video Tx interference
Mikrokopter mode, emits PPM on a chosen channel
Vehicle mode, couples two chosen channels (ideal for coupling steering servos on monster trucks)
USB Connection for easy firmware upgrades, and advanced configuration
Standard SMA antenna connectors, compatibility with standard 433/70cm band antennas
8 standard servo connectors
Failsafe, preset by button on the EzUHF transmitter
EzLink connection to a EzOSD, providing in-flight display, and telemetry down-linked parameters:
-RSSI Ant. 1, Ant 2
-Frequency Error
-SNR for each freq. bin
-Link Quality
Package Included:
1 x Receiver
2 x Antenna
