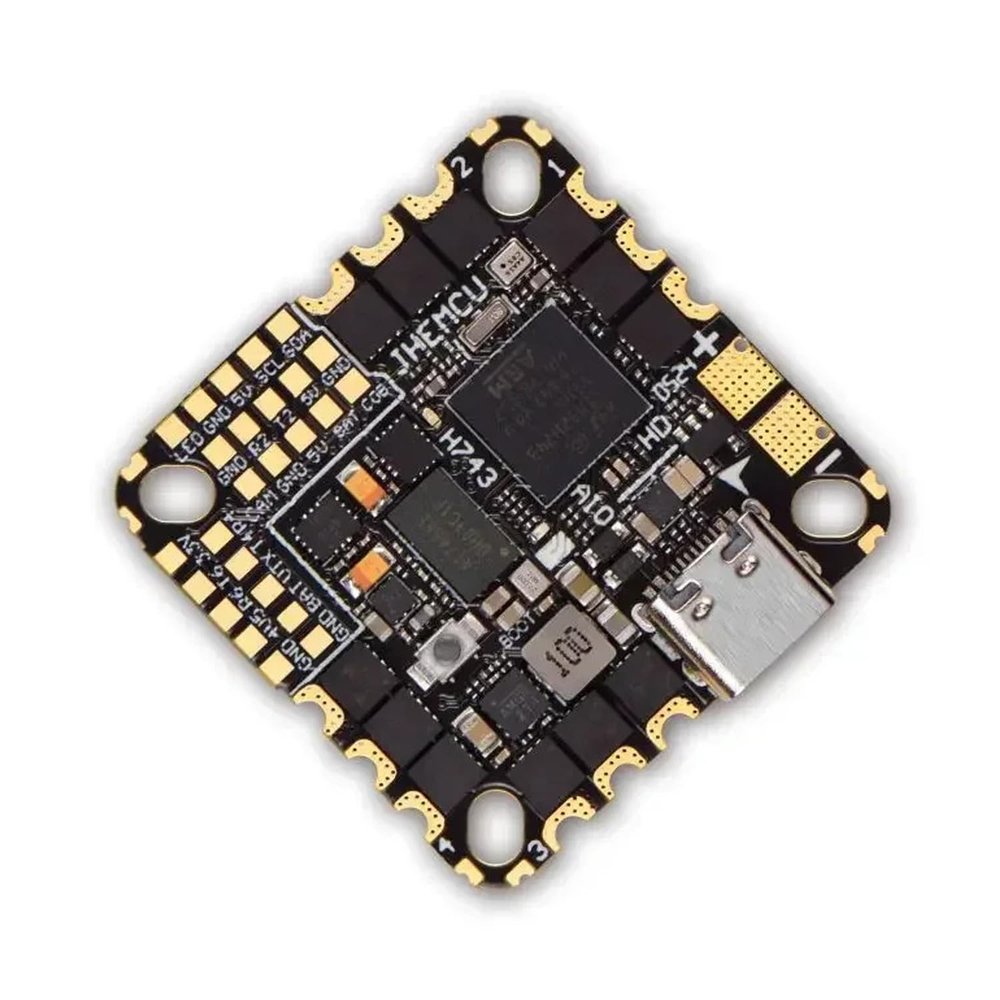

JHEMCU GH743AIO-HD 50A AIO Flight Controller with AM32 ESC and Dual ICM-42688 Gyros (50 Amps)

Description

• All-in-One Powerhouse Combines an STM32H743 480MHz flight controller and a 50A AM32 4-in-1 ESC into a compact 33x33mm board for high-performance FPV drones.
• Dual Precision Gyros Two ICM-42688-P sensors deliver ultra-accurate motion tracking for smooth, stable flight in freestyle, racing, or cinematic builds.
• AM32 ESC Preloaded with AM32 firmware, supporting DSHOT protocols for responsive, reliable throttle control on demanding setups.
• Full HD & Betaflight Ready Compatible with HD systems, preloaded with Betaflight 4.4.3, and equipped with a 128MB blackbox for in-depth flight data logging.
• Versatile & Lightweight Weighs just 8.5g, supports 25.5mm or 26.5mm mounting, and includes 5V BEC, Type-C USB, LED pad, voltage/current sensing, and buzzer pad.

The JHEMCU GH743AIO-HD is an all-in-one powerhouse, combining a Betaflight-ready STM32H743 flight controller and a 50A 4-in-1 AM32 ESC into a compact 33x33mm package. Designed for 36S FPV drones, this board features dual ICM-42688-P gyros for ultra-precise motion sensing, a 128MB blackbox for detailed flight logs, and full HD system support.
With its AM32 ESC firmware, it delivers 50A of continuous current per motor, making it perfect for demanding freestyle, racing, or cinematic builds. Complete with ELRS, TBS, SBUS, IBUS, and DSM receiver support, plus a Type-C port, buzzer pad, voltage and current sensors, and 25.5/26.5mm mounting compatibility, the GH743AIO-HD is ready to handle anything you throw at it.

Features:
STM32H743 MCU running at 480MHz for extreme processing power Dual ICM-42688-P gyro/accel sensors for ultra-precise flight control 50A AM32 4-in-1 ESC with DSHOT support Full HD system compatibility, Betaflight 4.4.3 firmware preloaded Compact, lightweight 33mm AIO design with 8.5g weight Flexible mounting: 25.5x25.5mm or 26.5x26.5mm, M3 Type-C USB, 5V BEC, programmable LED, buzzer pad, and blackbox

Specifications:
Model: GH743AIO-HD MCU: STM32H743 480MHz IMU: 2x ICM-42688-P (gyro/accel) OSD: AT7456E Barometer: Yes Blackbox: 128MB Input voltage: 36S (11.526V) 5V BEC: 5V/2.5A 0.1V 10V BEC: No Receiver protocols: ELRS (CRSF), TBS (CRSF), SBUS, IBUS, DSM2, DSMX HD system: Yes UARTs: UART1UART7 I2C: Yes LED strip: Yes USB: Type-C Buzzer: 5V pad ESC signal: DSHOT150/300/600 Current port: Yes Voltage sensor: Yes DFU button: Yes FC firmware: Betaflight_4.4.3 JHEH743HD.HEX ESC continuous current: 50A (AM32) ESC firmware: AM32_F4A_4IN1_F421_1.98.HEX Size: 33x33mm Mounting holes: 25.5x25.5mm or 26.5x26.5mm, M3 Weight: 8.5g

Package Contents:
1x GH743AIO-HD Flight Controller 1x Soldering Practice Board 4x 28AWG Wires 4x M2*6.5mm Shock Balls 1x Type-C Converter Board 1x XT60 Connector 1x 470uF 35V Capacitor 2x Power Wires (50A-14AWG / 40A-16AWG)
