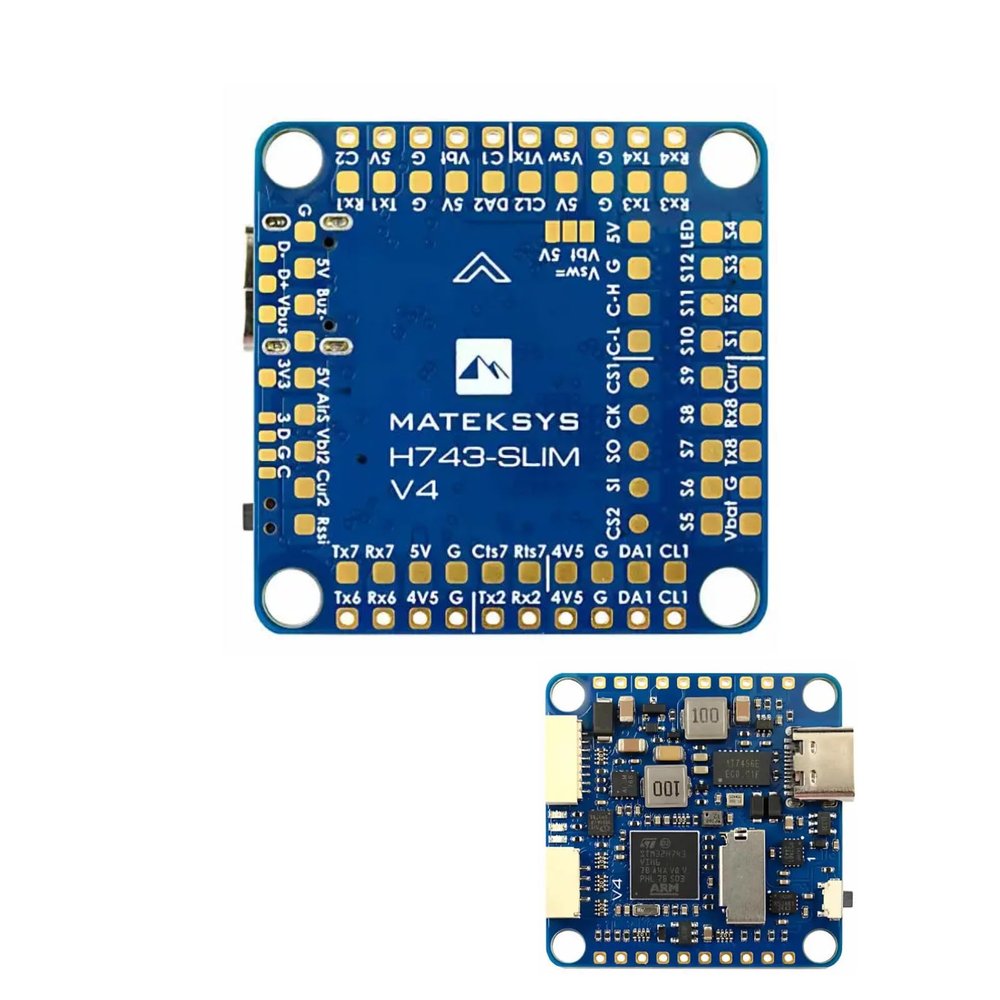

Mateksys H743 Slim V4 Flight Controller with Built-in OSD and MicroSD, FPV Multicopter RC Drone Control Board

Description

• 480MHz STM32H743 MCU, dual ICM42688P IMU & DPS368 barometer. Built-in AT7456E OSD and MicroSD blackbox for stable flight
• 7 UARTs with inversion, 13 PWM outputs, 2 I2C & 1 CAN port. Dual camera input switch meets FPV expansion needs
• 6-36V wide voltage for 2S-8S LiPo with TVS protection. 5V 2.5A BEC supports DJI FPV OSD and VTX power supply
• Fully compatible with Betaflight, ArduPilot and INAV. 30.530.5mm mount, ultra slim 36365mm, only 7g light weight
• Complete accessories included: grommets, JST cables and connectors. Perfect for FPV racing drone and RC multicopter build

Physical
Mounting: 30.5 x 30.5mm, 4mm with Grommets 3mm
Dimensions: 36 x 36 x 5 mm
Weight: 7g
Including
1x H743-SLIM-V4
6x Silicon grommets M4 to M3
1x JST-SH1.0_8pin cable, 5cm
2x JST-SH1.0_8pin connectors
1x JST-GH-4P to JST-GH-4P cable for CAN port, 20cm
