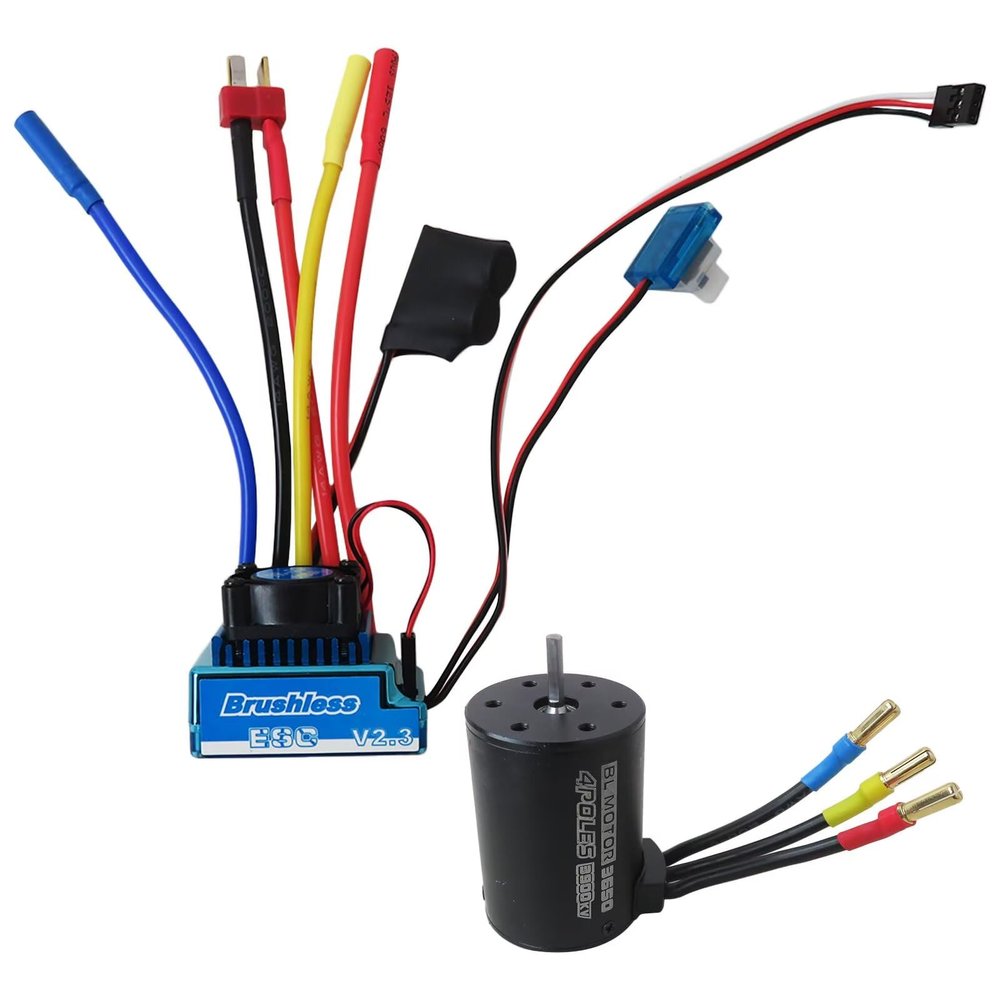

MUNTICO Upgraded for 1:10 Scale Brushless Motor ESC Combo Set with 3900KV Motor and 120A ESC

Description

• High-Efficiency Power Output - 4-pole 12-slot motor design with high-purity copper windings delivers exceptional torque and optimized energy conversion
• Enhanced 120A ESC Performance - Features improved throttle response, excellent acceleration characteristics, and super-smooth throttle linearity
• Multi-Scale Vehicle Compatibility - Designed for 1:8, 1:10, and 1:12 scale remote control cars with broad application versatility
• Comprehensive Safety Protection - Built-in low voltage cut-off, over-heat protection, and throttle signal loss protection for reliable working
• Dual-ball Bearings Design - Splashproof and dust-proof design with dual-ball bearings ensures all-weather racing capability

Features:
Advanced Motor Technology - 4-pole 12-slot design with precision-balanced rotor and high-purity copper windings for smooth, efficient power delivery
High-Capacity ESC Performance - 120A electronic speed controller provides enhanced throttle response, excellent acceleration, and accurate throttle linearity
Multi-Scale Compatibility - Perfectly suited for 1:8, 1:10, and 1:12 scale remote control cars with versatile application range
Complete Protection System - Integrated low voltage protection, over-heat safeguard, and signal loss protection for secure working
Dual-ball bearings design - Splashproof and dust-proof construction with dual-ball bearings ensures consistent performance in various conditions

Technical Specifications:
120A ESC
Burst Current: 320A
Continue Current: 120A
BEC Output: 5.8V / 3A
Power Supply Plugs: T plug male
batt-ery: 2S Li-Po / 4-9S Ni-Mh Ni-Cd
3650 3900kv Motor
Watts: 900W
Length: 50mm
Max Amps: 69A
Max RPM: 50000
Diameter: 36mm
Max voltage: <13V
Shaft length: 15mm
KV(RPM/Volt): 3900KV
Shaft diameter: 3.175mm

How to Use:
1. Connect BEC wires with the receiver.
2. Connect motor wires with ESC.
3. Turn on the transmitter.
4. Connect batt-ery pack (not included) with ESC then switch on the ESC.
5. When the connection of motor and batt-ery is finished, the motor emits "Beep-Beep" tone.
6. When the throttle stick is in the neutral position, the motor re-emits "Beep-Beep" tone.
7. The ESC is workable.

Package Includes:
- 1 x Brushless motor
- 1 x Brushless ESC

Warm Tips::
The batt-ery is suitable for a 2S batt-ery. But try not to use a 3S batt-ery. When using the 3S batt-ery, the motor needs to be replaced with one below 3000KV
