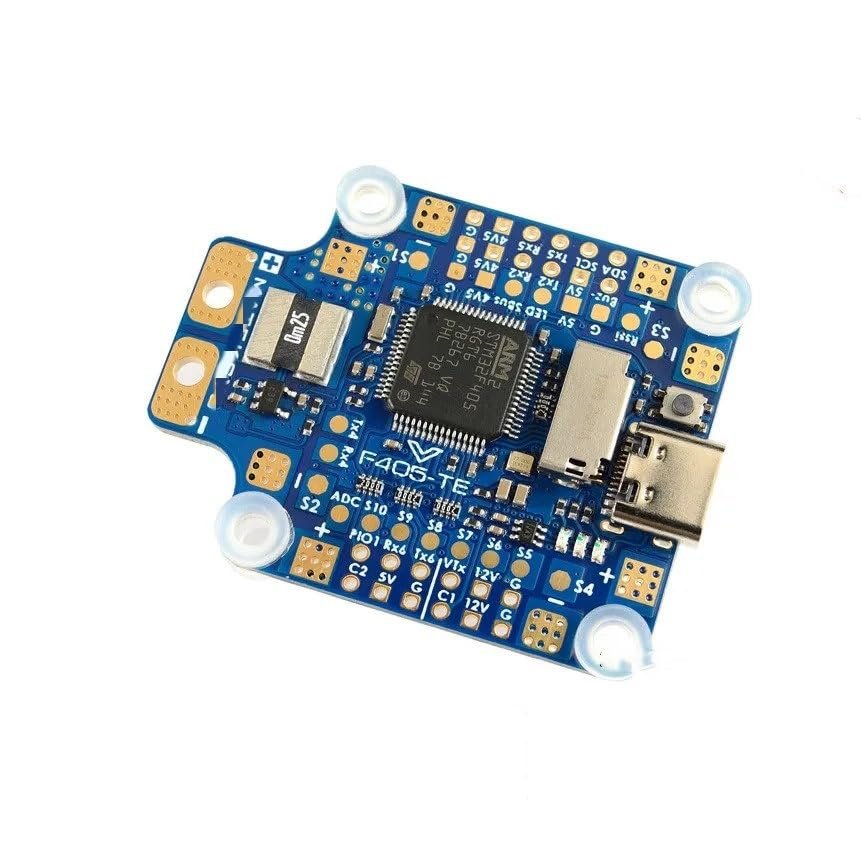

Accessories Drone For Matek For MATEKSYS F405-TE F405 STM32F405RGT6 Flight Controller Built-in OSD SD Slot For RC Drone F405-SE Updated Version Replaceable

Description

For Matek For MATEKSYS F405-TE F405 STM32F405RGT6 Flight Controller Built-in OSD SD Slot For RC Drone F405-SE Updated Version

TIPS
For INAV, For DSHOT can not work on S3, S5,S7 because of DMA clash, pls use ONESHOT or MULTISHOT and calibrate ESC PWM range.
For BetaFlight, set dshot_bitbang = ON when using X6 and X8 DSHOT.
For ArduPilot, set LOG_BACKEND_TYPE = 1 (File) for SD card logging

Specifications
MCU: 168MHz STM32F405RGT6
IMU: ICM42688-P (SPI)
Baro: SPL06-001 (I2C)
OSD: AT7456E (SPI)
Blackbox: MicroSD slot (SPI)
6x For UARTs, 1x Softserial_Tx option(INAV/BF)
11x PWM outputs (8x Dshot compatible with BF/ArduPilot)
1x I2C
4x ADC (VBAT, Current, RSSI, Airspeed)
1x spare PINIO
4x individual ESC power/signal pads
1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
Built in inverter on For UART2-RX for SBUS input
Switchable Dual Camera Input
PDB Specifications
Input: 9~36V (3~8S LiPo)
PDB: 4x 35A (Max.4x 50A)
BEC: 5V 1.5A
BEC: 12V 2A
LDO 3.3V: 200mA
Current Senor: 220A, 3.3V ADC (INAV/BF scale 150, ArduPilot 66.7 A/V)
Battery Voltage divider 1K:20K (INAV scale 2100, BF scale 210, ArduPilot BATT_VOLT_MULT 21.0)
Firmware
ArduPilot: For MatekF405-TE
INAV: For MATEKF405TE_SD
BetaFlight: For MATEKF405TE
Physical
Mounting: 30.5 x 30.5mm, 4mm with Grommets3mm
Dimensions: 36 x 46 mm
Weight: 10g
Including
1x F405-TE
6x silicon grommets M4 to M3
1x For Rubycon ZLH 35V/470uF (Low ESR)
