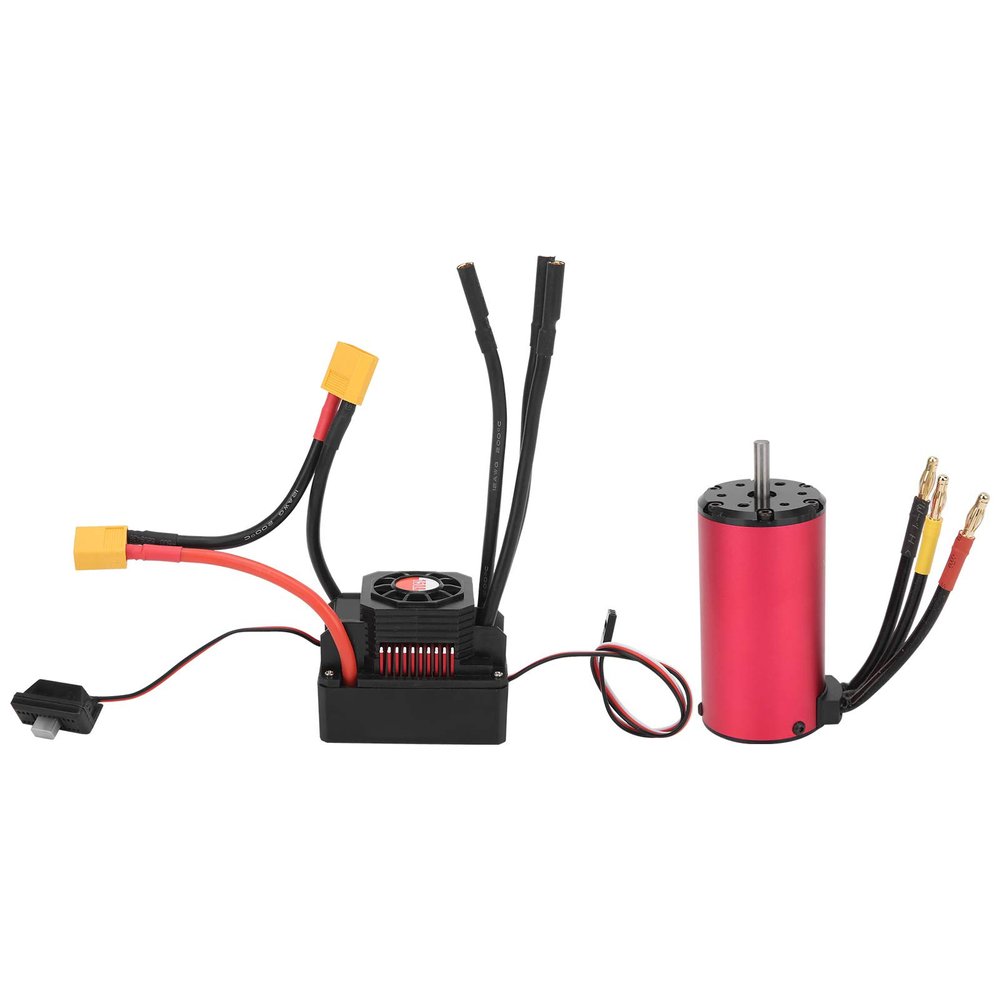

VGEBY RC Motor ESC, HighSpeed CNC 1:8 Scale Remote Control Car Brushless Motor 2000KV+150A ESC with Plug RC Accessory Car Model Accessory 150A Esc

Description

• QUALITY MATERIAL-- It adopts 4level 12slot hightorque motor design, which can realize maximum power conversion.
• CNC MACHINING-- CNC machined steel billet, 6061 aluminum heat sink, secondary oxidation treatment, highend and fine appearance.
• HIGH PERFORMANCE-- Highspeed ABEC5 ultra sealed bearings, low friction, low noise, high , and longlasting use.
• SUITABLE FOR-- 4.0mm/0.157in goldplated connector,5.0mm/0.20in output shaft, suitable for 1/8 brushless model, can use M3+M4 screw.
• HIGH SPEED-- Highbalanced explosionproof rotor, high smoothness, high and high speed, dynamic balanced control within 10mg, which can be removed and replaced later.

Specification:
Material: Plastic + Metal + Electronic Components
Weight: Approx. 575.0g/20.3oz
4076 Motor: (rpm/volt): 2000KV
Wattage: 2800
Maximum rpm: 50000

Maximum Voltage: <21V
Maximum Ampere: 135A
Number of Rotor Poles: 4
Diameter: Approx. 40mm/1.6in
Length: Approx. 76mm/3.0in
Shaft Size: Approx. 5.0mm/0.20in
Shaft length: Approx. 18mm/0.7in
Connector: Approx. 4.0mm/0.16in

150A ESC:
Continuous Current: 150A
Maximum Current: 720A
Applicable Motor Type: Sensorless and Brushless Motor
For lipo 4S or 12 nimh cells:
1. Highway: 40xx size or smaller engine, <3000kv
2. Off-road/off-road vehicle/: 40xx size or smaller engine with <2500kv
For lipo 6s or 18 nimh cells:
1. Highway: 40xx size or smaller engine with <2500kv
2. Off-road/off-road vehicle/: 40xx size or smaller engine with <2000kv
0.00030ohm
Battery: 3-6 cells Lipo / 9-18 cells NIMH
BEC Output: 6.1V or 7.4V/3A (switch mode)
ESC Size: Approx. 60x45x45mm/2.4x1.8x1.8in
Fit for 1/8 RC cars

Package List:

1 x Motor
1 x ESC
2 x Manual
